A A10V O 71LA8DS/32R-VWD11N00 -S2445 (R902462642)
Axial piston variable pump O, swashplate design, open circuit, nominal pressure 280 bar, maximum pressure 350 bar. Series 32. Geometric displacement 71 cm3. Power controller with pressure cut-of and flow control, hydraulic. Beginning of control from 161 to 240 bar. Directions of rotation: clockwise (viewed on drive shaft). Seal: FKM (fluoroelastomer). Splined shaft ANSI B92.1a, higher torque, limited suitability for through drive. Mounting flange ISO 3019-1 SAE C; 4-hole. SAE flange ports: rear, metric fastening thread. Without through drive.

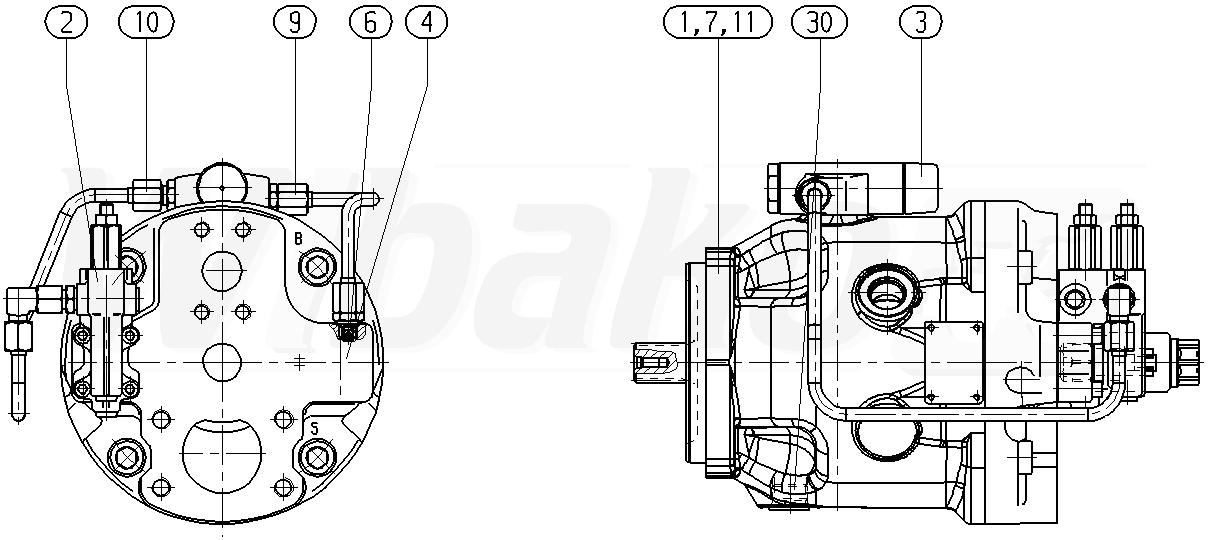

The above diagrams belong to Rexroth www.boschrexroth.com
