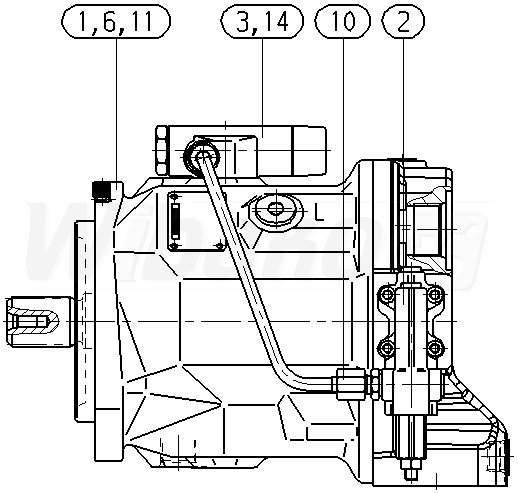

A A10V O 74 DFLR /31R-VSC46N00 -S2645 (R902470909)

Axial piston variable pump A10V, swashplate design, open circuit, nominal pressure 280 bar, maximum pressure 350 bar. Series 31. Geometric displacement 74 cm3. Pressure-flow power control. Sealing material: FKM (fluoroelastomer). Drive splined shaft ANSI B92.1a. Mounting flange ISO 3019-1 (SAE) 2-hole.
1

BASE UNIT
(118562)

Group »


2

CONTROL VALVE
(17374)

Group »


3

CONTROL VALVE
(111131)

Group »


6

SIDE MARKER RING
(19923)


10

PIPING
(17379)

Group »


11

POWER DIAGRAM
(115957)


14

SCREW PLUG
(11928)



Return

The above diagrams belong to Rexroth www.boschrexroth.com
