AA10VO74DFLR/31R-VSC12N00-SO588 (R910990012)

Axial piston variable pump A10V, swashplate design, open circuit, nominal pressure 280 bar, maximum pressure 350 bar. Series 31. Geometric displacement 74 cm3. Pressure-flow power control. Sealing material: FKM (fluoroelastomer). Drive splined shaft ANSI B92.1a. Mounting flange ISO 3019-1 (SAE) 2-hole. SAE flange ports according to J518. Working ports metric. Fastening thread metric; lateral top bottom for through drive. Without through drive.

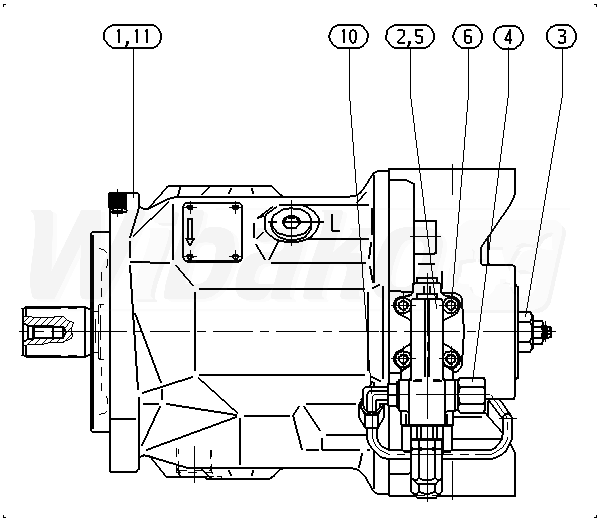

1

BASE UNIT
(118610)

Group »


2

CONTROL VALVE
(64421)

Group »


3

CONTROL VALVE
(54716)

Group »


4

ADAPTER
(118604)

Group »


5

SEAL
(10001)


6

SOCKET HEAD CAP SCREW
(10002)


10

PIPING
(54719)

Group »



Return

The above diagrams belong to Rexroth www.boschrexroth.com
