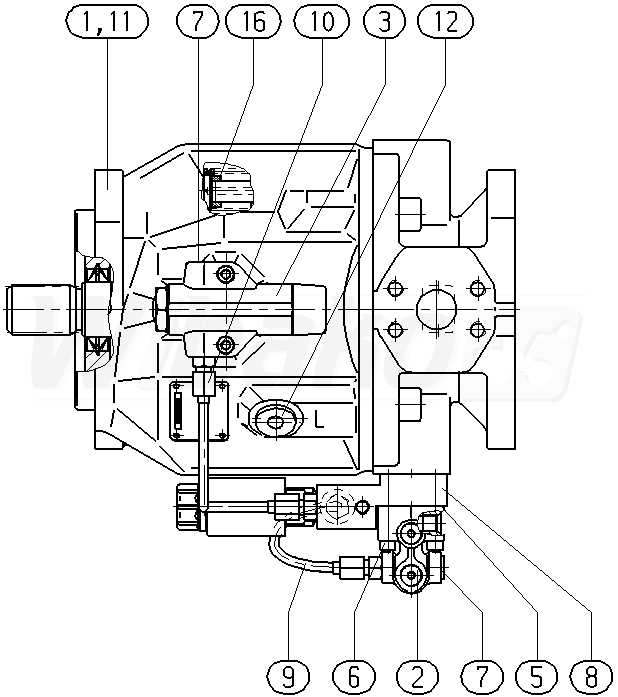

A A10V O 74 DFLR/31R-VSC42K04 -S3037 (R902483269)

Axial piston variable pump A10V, swashplate design, open circuit, nominal pressure 280 bar, maximum pressure 350 bar. Series 31. Geometric displacement 74 cm3. Pressure-flow power control. Sealing material: FKM (fluoroelastomer). Drive splined shaft ANSI B92.1a. Mounting flange ISO 3019-1 (SAE) 2-hole. SAE flange ports according to J518. Working ports metric. Fastening thread metric; lateral top bottom for through drive. Through drive. Flange ISO 3019-1 101-2 (B) . Hub for splined shaft 1 in 15T 16/32DP.
1

BASE UNIT
(118625)

Group »


2

CONTROL VALVE
(17388)

Group »


3

CONTROL VALVE
(111131)

Group »


5

SEAL
(10001)


6

SOCKET HEAD CAP SCREW
(13888)


7

SCREW PLUG
(11928)


8

VALVE PLATE
(118626)

Group »


9

PIPING
(118627)

Group »


10

PIPING
(118628)

Group »


11

POWER DIAGRAM
(118629)


12

SCREW PLUG
(13231)


16

SIDE MARKER RING
(17380)


51

SAFETY CAP
(13891)



Return

The above diagrams belong to Rexroth www.boschrexroth.com
