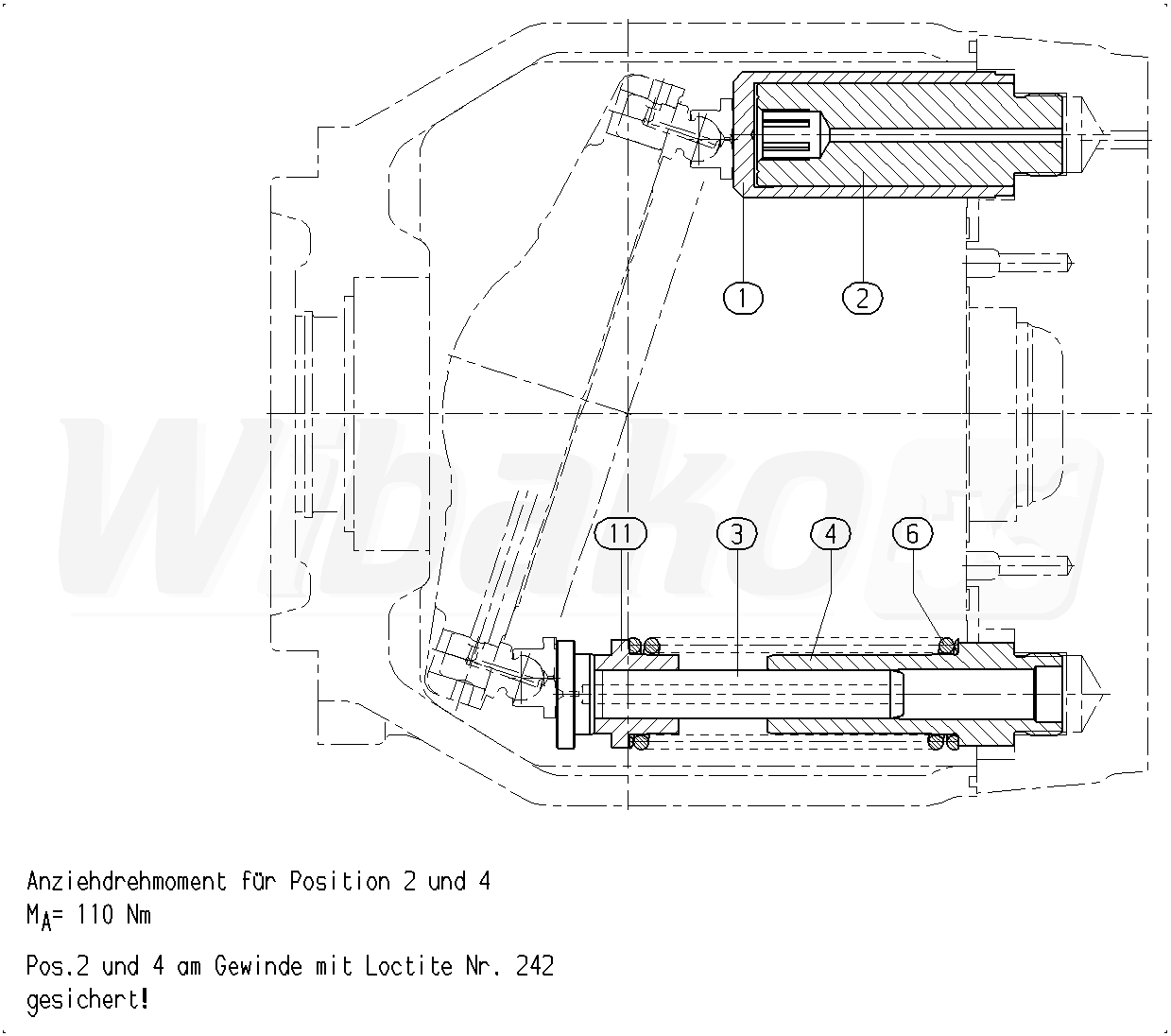

AA10VO74FHD/31R-VSC12N00-S1061 (R902403271)
ADJUSTING PIECE (118904)

ADJUSTING PIECE
(118904)


1

ADJUSTING PISTON
(118649)


2

PISTON GUIDE
(118650)


3

OPPOSED PISTON
(13917)


4

PISTON GUIDE
(51125)


6

COMPRESSION SPRING
(118024)


11

SPRING DISK
(118025)



Return
