A A10V O 74EK2DS/32L-VSD46N00P -S2835 (R902478180)
Axial piston variable pump O, swashplate design, open circuit, nominal pressure 280 bar, maximum pressure 350 bar. Series 32. Geometric displacement 74 cm3. Directions of rotation: counter-clockwise (viewed on drive shaft). Seal: FKM (fluoroelastomer). Splined shaft ANSI B92.1a, standard. Mounting flange ISO 3019-1 SAE D; 4-hole.

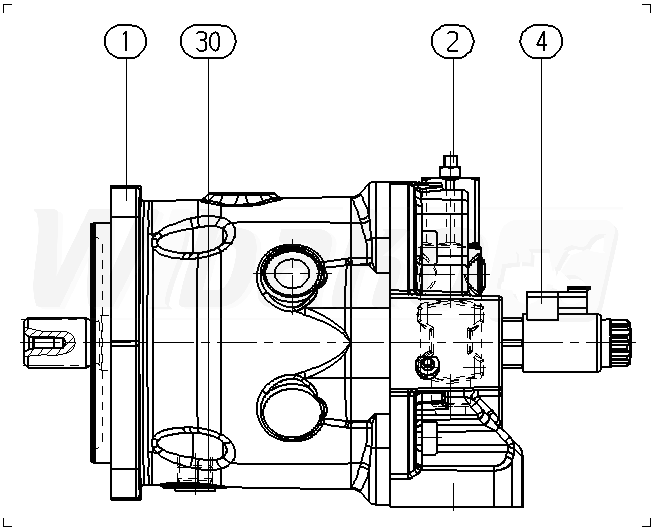

The above diagrams belong to Rexroth www.boschrexroth.com
