AA10VO85DRS/53R-VUC59N'980392*G*& (R902480277)

Axial piston variable pump A10VO, swashplate design, open circuit, nominal pressure 250 bar, maximum pressure 315 bar. Series 53. Geometric displacement 85 cm3. Pressure controller with flow controller, hydraulic, X-T plugged with flushing function. Seal: FKM (fluoroelastomer). Splined shaft ISO 3019-1, reduced diameter, limited suitability for through drive. Mounting flange ISO 3019-1 (SAE) 2-hole.
1

BASE UNIT
(119535)

Group »


2

CONTROL VALVE
(14674)

Group »


3

ADJUSTING PIECE
(119536)

Group »


30

SCREW PLUG
(13818)


40

STOP SCREW
(20691)


43

O-RING
(11933)


50

SWIVEL ANGLE SENSOR
(119537)

Group »



Return

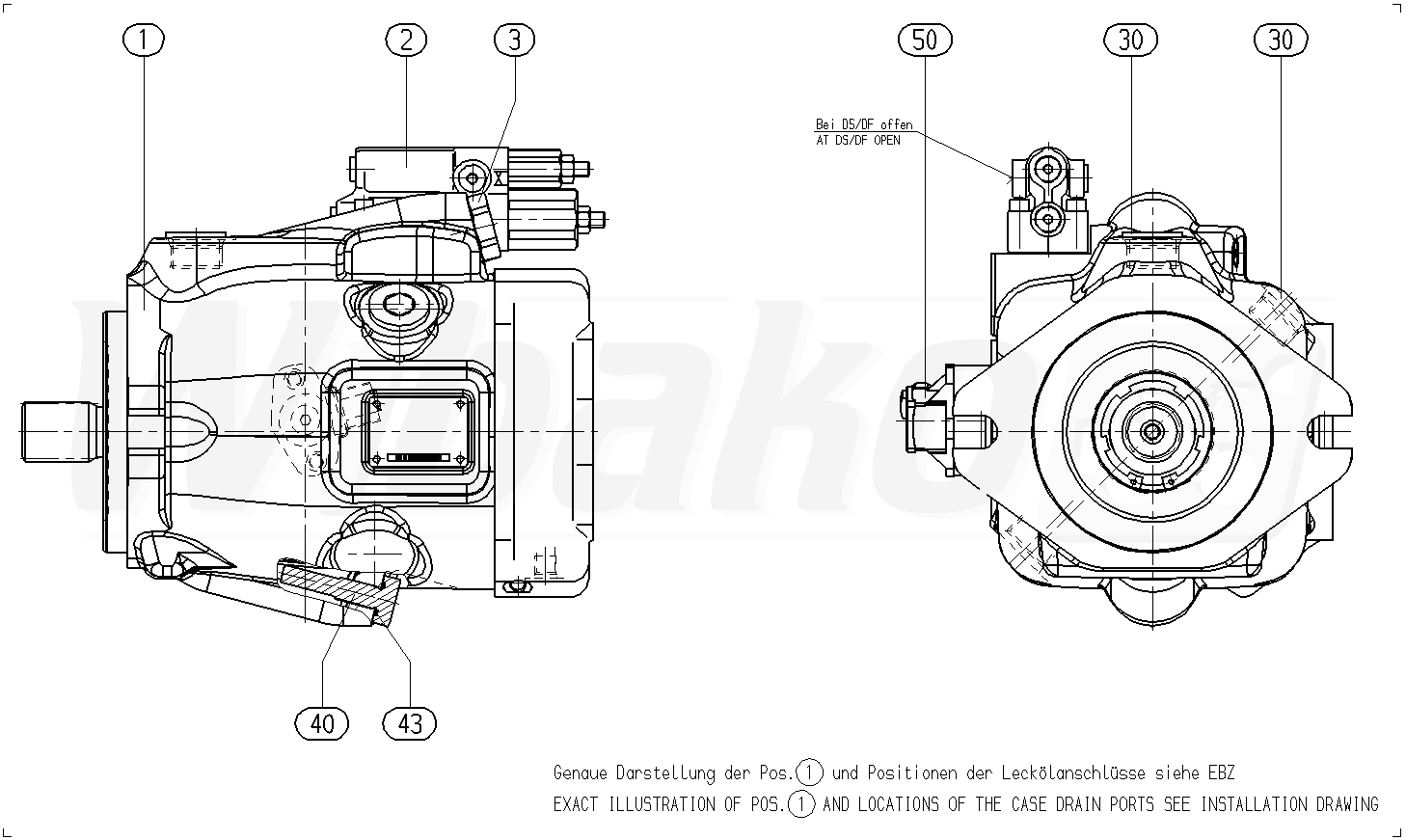

The above diagrams belong to Rexroth www.boschrexroth.com
