AA11VO130LG2S/10+AA4VG56DWD/31 (R909601553)

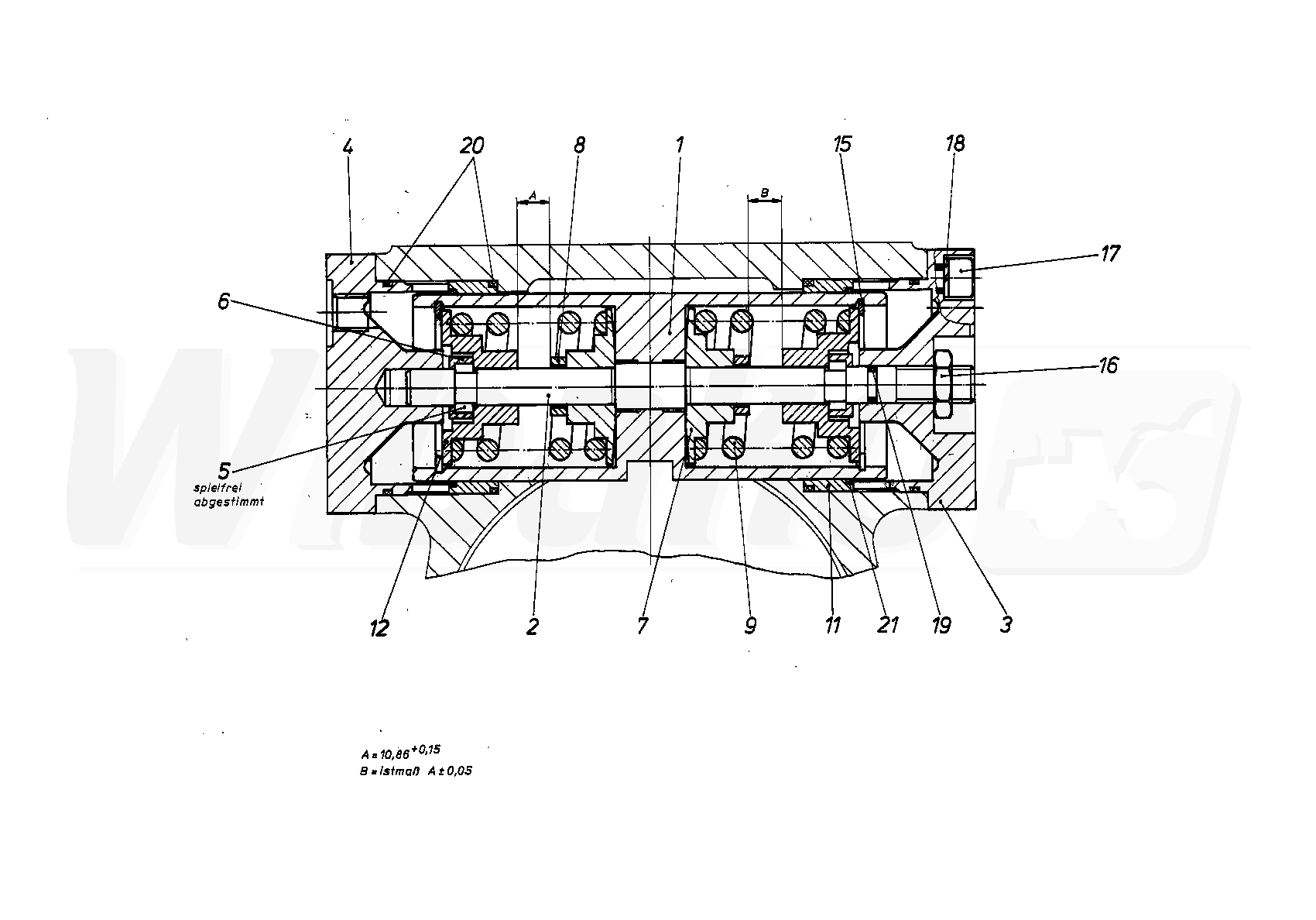

CONTROL (29636)

CONTROL
(29636)


1

POSITIONING PISTON
(29834)


2

ROD
(10852)


3

COVER
(29835)


4

COVER
(29836)


5

RING
(10651)


5

RING
(10652)


5

RING
(10653)


5

RING
(10654)


5

RING
(10655)


5

RING
(10656)


5

RING
(10657)


5

RING
(10658)


6

SLEEVE
(12292)


7

SPRING DISK
(10853)


8

SPACER RING
(10854)


8

SPACER RING
(10855)


8

SPACER RING
(10856)


8

SPACER RING
(10857)


8

SPACER RING
(10858)


8

SPACER RING
(10859)


9

COMPRESSION SPRING
(10860)


11

BUSHING
(21308)


12

SPRING DISK
(10862)


15

RETAINING RING
(10178)


16

HEXAGON NUT
(10645)


17

SOCKET HEAD CAP SCREW
(10848)


18

SPRING LOCK WASHER
(10777)


19

O-RING
(10227)


20

O-RING
(10849)


21

ROD SEAL
(29837)



Return

The above diagrams belong to Rexroth www.boschrexroth.com
