AA11VO130LG2S/10+AA4VG56DWD/31 (R909601553)

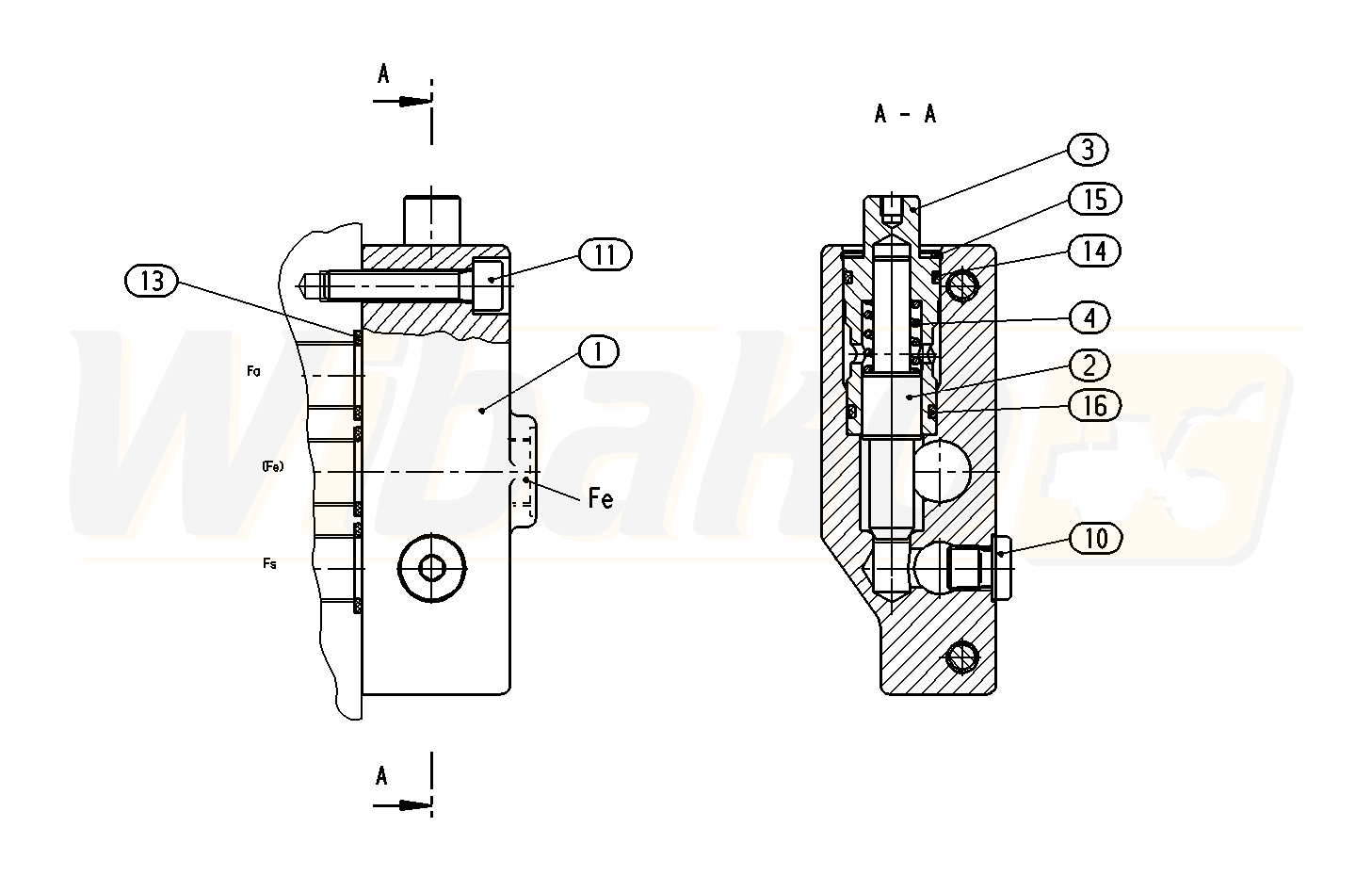

FILTERING PLATE (23816)

FILTERING PLATE
(23816)


1

FILTER CONNECTION PLATE
(24773)


2

VALVE SPOOL
(22488)


3

PISTON GUIDE
(22489)


4

COMPRESSION SPRING
(22490)


10

SCREW PLUG
(10190)


11

SOCKET HEAD CAP SCREW
(10340)


13

O-RING
(10214)


14

O-RING
(12467)


15

RETAINING RING
(22491)


16

O-RING
(10214)



Return

The above diagrams belong to Rexroth www.boschrexroth.com
