AA10VO100EP1D/32L-VUC11N00-S2896 (R902479536)
Axial piston variable pump O, swashplate design, open circuit, nominal pressure 280 bar, maximum pressure 350 bar. Series 32. Geometric displacement 100 cm3. Directions of rotation: counter-clockwise (viewed on drive shaft). Seal: FKM (fluoroelastomer). Splined shaft ANSI B92.1a, reduced diameter, limited suitability for through drive. Mounting flange ISO 3019-1 SAE C; 2-hole. SAE flange ports: rear, metric fastening thread. Without through drive.

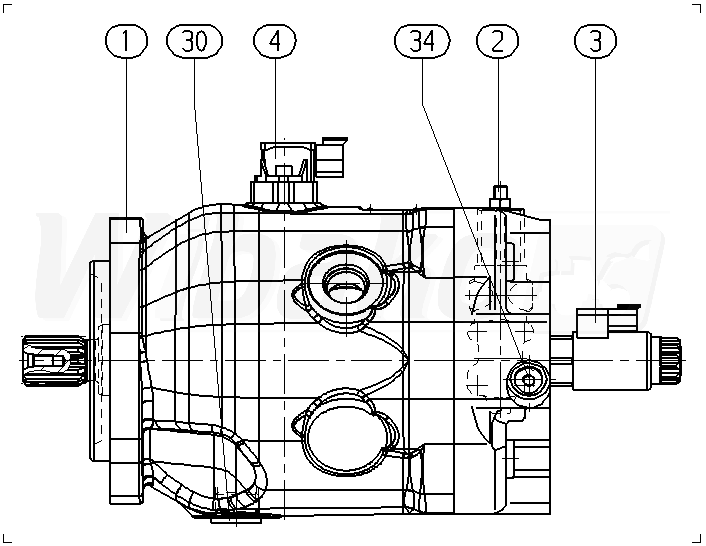

The above diagrams belong to Rexroth www.boschrexroth.com
