A A10V O100 FHD /31L-PSC12K07 -SO655 (R910983165)
Axial piston variable pump , swashplate design, open circuit, nominal pressure 280 bar, maximum pressure 350 bar. Series 31. High-speed version. Geometric displacement 10 cm3. Drive splined shaft ANSI B92.1a. Mounting flange ISO 3019-1 (SAE) 2-hole. SAE flange ports according to J518. Working ports metric. Fastening thread metric; lateral top bottom for through drive. Through drive. Flange ISO 3019-1 127-2 (C). Hub for splined shaft 1 1/4 in 14T 12/24DP .

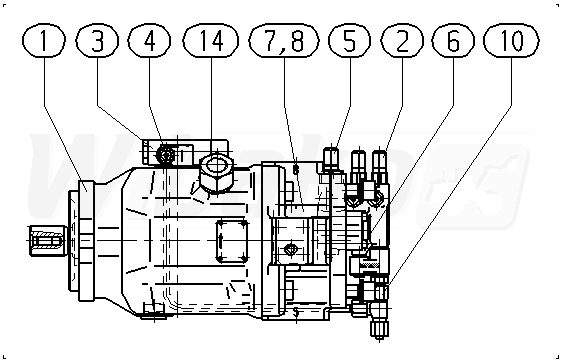

The above diagrams belong to Rexroth www.boschrexroth.com
