A A10V O140 DFLR/31L-VSD62N00 (R902490638)
Axial piston variable pump A10V, swashplate design, open circuit, nominal pressure 280 bar, maximum pressure 350 bar. Series 31. Geometric displacement 140 cm3. Pressure-flow power control. Sealing material: FKM (fluoroelastomer). Drive splined shaft ANSI B92.1a. Mounting flange ISO 3019-1 (SAE) 4-hole. SAE flange ports according to J518 Working ports UNF. Fastening thread UNF; lateral top bottom, for through drive. Without through drive.

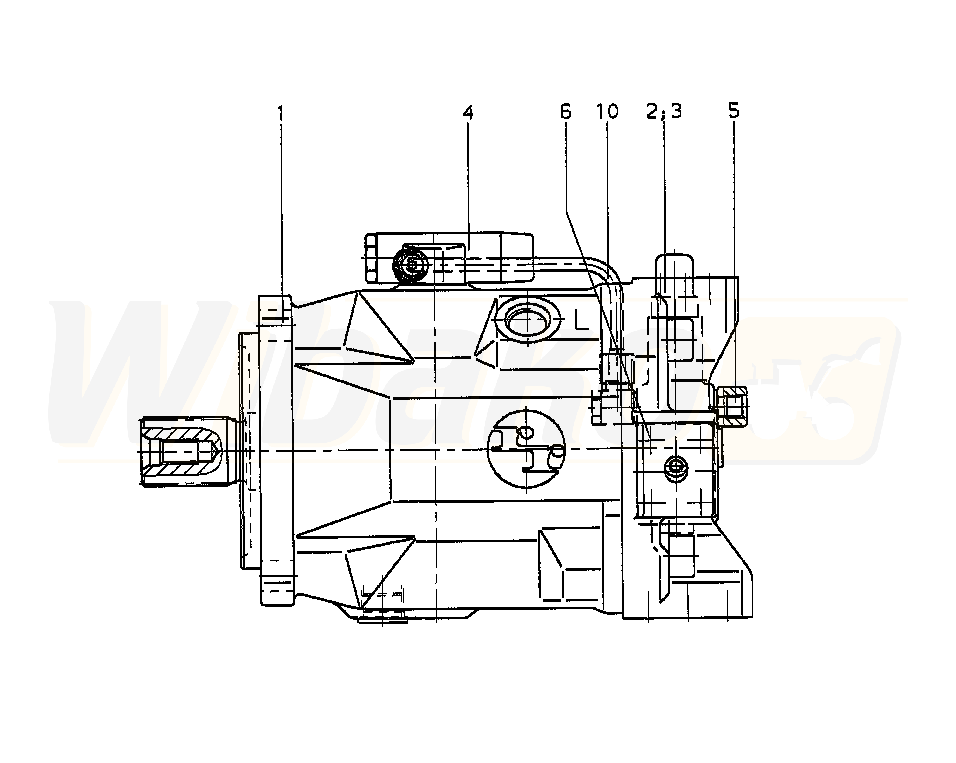

The above diagrams belong to Rexroth www.boschrexroth.com
