A A10V O140 DG /31R-PSD62K52 (R902436915)
Axial piston variable pump A10V, swashplate design, open circuit, nominal pressure 280 bar, maximum pressure 350 bar. Series 31. Geometric displacement 140 cm3. Two-point control, direct operated. Drive splined shaft ANSI B92.1a. Mounting flange ISO 3019-1 (SAE) 4-hole. SAE flange ports according to J518 Working ports UNF. Fastening thread UNF; lateral top bottom, for through drive. Through drive. Flange ISO 3019-1 82-2 (A). Hub for splined shaft 3/4 in 11T 16/32DP .

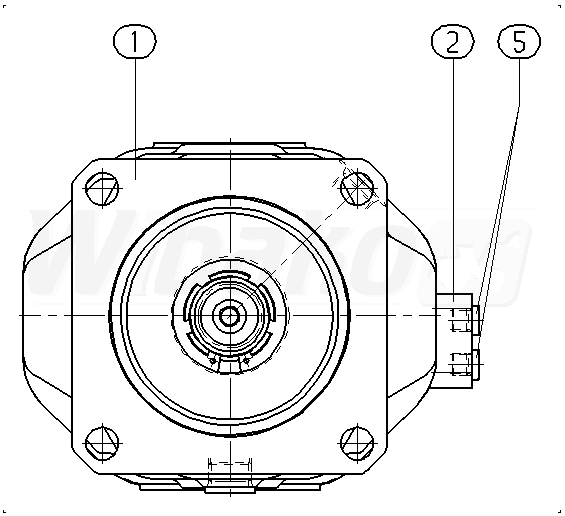

The above diagrams belong to Rexroth www.boschrexroth.com
