A A10V O140 DRG /31R-PSD11N00 (R902438192)
Axial piston variable pump A10V, swashplate design, open circuit, nominal pressure 280 bar, maximum pressure 350 bar. Series 31. Geometric displacement 140 cm3. Pressure controller with pressure cut-of, hydraulic, remote controlledDrive splined shaft ANSI B92.1a. Mounting flange ISO 3019-1 (SAE) 4-hole. SAE flange ports according to J518. Working ports metric. Fastening thread metric; rear not for through drive. Without through drive.

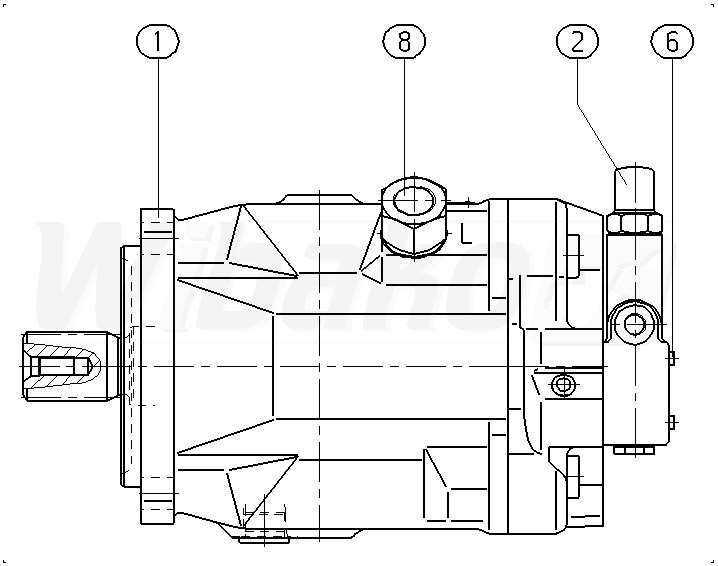

The above diagrams belong to Rexroth www.boschrexroth.com
