A A10V O140 FE1 /31L-VSD12K17 -SO712 (R902404175)
Axial piston variable pump A10V, swashplate design, open circuit, nominal pressure 280 bar, maximum pressure 350 bar. Series 31. Geometric displacement 140 cm3. Sealing material: FKM (fluoroelastomer). Drive splined shaft ANSI B92.1a. Mounting flange ISO 3019-1 (SAE) 4-hole. SAE flange ports according to J518. Working ports metric. Fastening thread metric; lateral top bottom for through drive. Through drive. Flange ISO 3019-1 152-4 (D). Hub for splined shaft 1 3/4 in 13T 8/16DP .

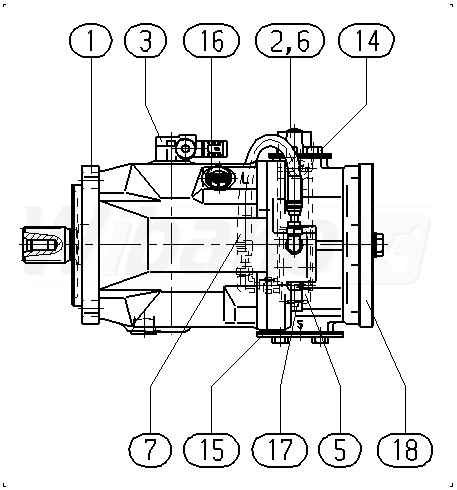

The above diagrams belong to Rexroth www.boschrexroth.com
