A A10V O140 FHD /31R-PSD62K17 (R902437165)
Axial piston variable pump , swashplate design, open circuit, nominal pressure 280 bar, maximum pressure 350 bar. Series 31. High-speed version. Geometric displacement 10 cm3. Drive splined shaft ANSI B92.1a. Mounting flange ISO 3019-1 (SAE) 4-hole. SAE flange ports according to J518 Working ports UNF. Fastening thread UNF; lateral top bottom, for through drive. Through drive. Flange ISO 3019-1 152-4 (D). Hub for splined shaft 1 3/4 in 13T 8/16DP .

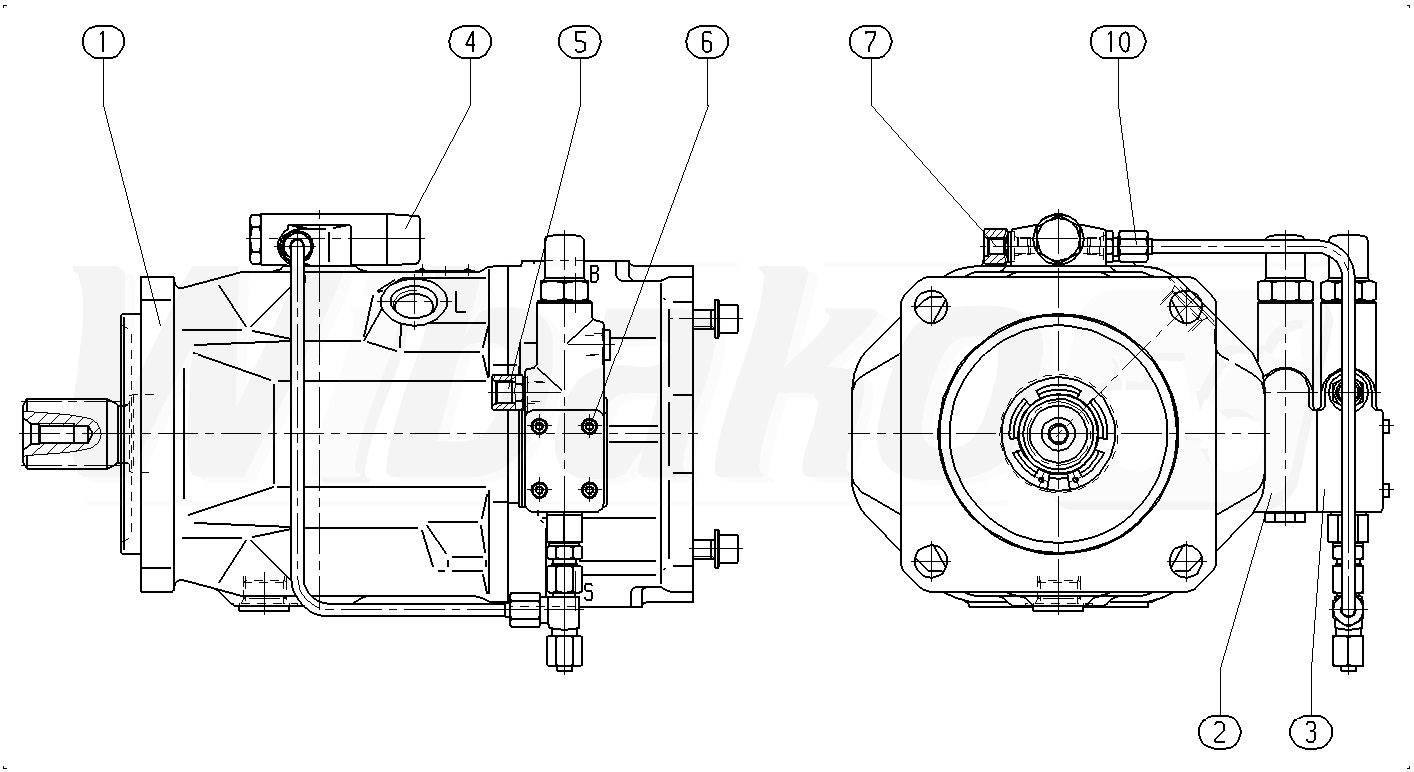

The above diagrams belong to Rexroth www.boschrexroth.com
