AA10VO140+DFLR/31R-PSD62N00MESSE (R910919330)

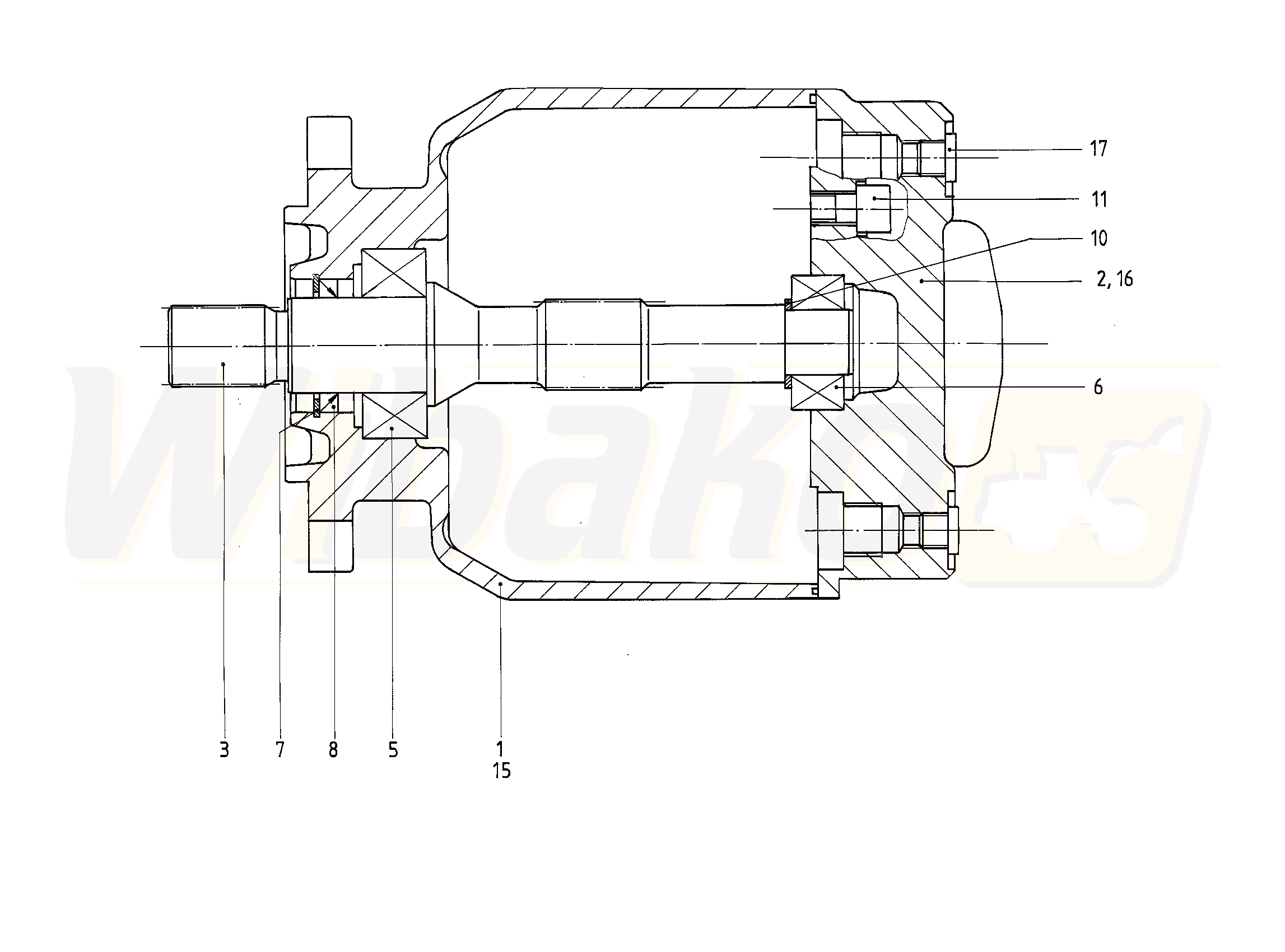

BASE UNIT (122435)

BASE UNIT
(122435)


1

PUMP HOUSING
(121549)


2

CONNECTION PLATE
(20722)


3

DRIVE SHAFT
(122436)


5

TAPERED-ROLLER BEARING
(17858)


6

TAPERED-ROLLER BEARING
(17859)


7

RETAINING RING
(17862)


8

SHAFT SEALING RING
(20725)


10

ADJUSTMENT SHIM
(17856)


11

SOCKET HEAD CAP SCREW
(17863)


15

SCREW PLUG
(14354)


16

DOUBLE BREAK-OFF PLUG
(18990)


17

SCREW PLUG
(10090)



Return

The above diagrams belong to Rexroth www.boschrexroth.com
