A A10V O140ED 73/32L-VSD12K17P -SO200 (R902485477)
Axial piston variable pump O, swashplate design, open circuit, nominal pressure 280 bar, maximum pressure 350 bar. Series 32. Geometric displacement 140 cm3. Directions of rotation: counter-clockwise (viewed on drive shaft). Seal: FKM (fluoroelastomer). Splined shaft ANSI B92.1a, standard. Mounting flange ISO 3019-1 SAE D; 4-hole. SAE flange ports: at top, at bottom, on opposite side, metric fastening thread. Through drive flange ISO 3019-1 152-4 (D), hub for splined shaft 1 3/4 in 13T 8/16DP. DEUTSCH molded connector, 2-pin – without suppressor diode.

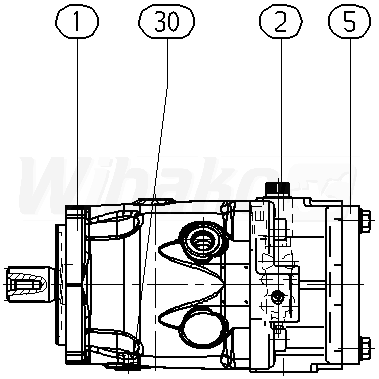

The above diagrams belong to Rexroth www.boschrexroth.com
