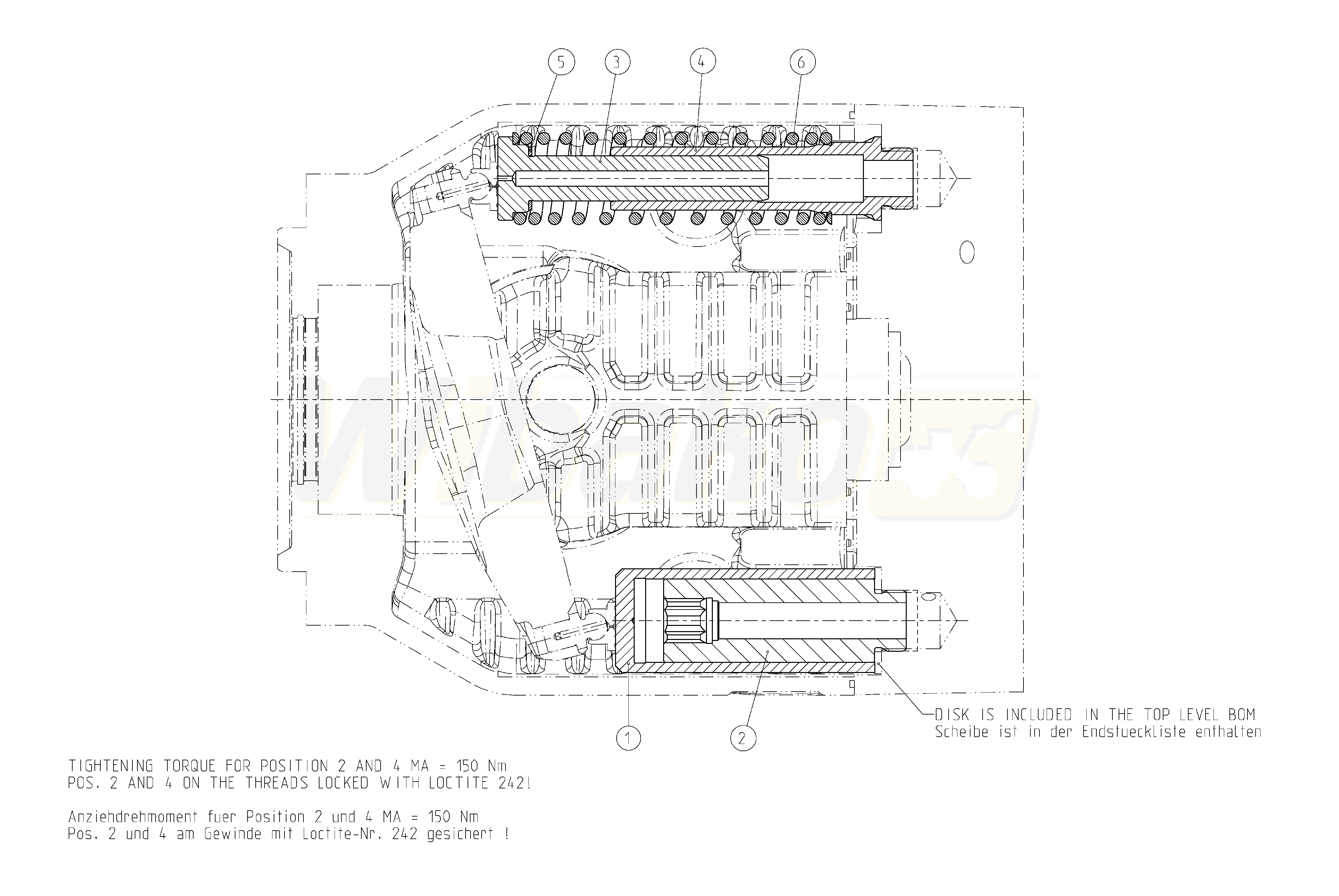

A A10V O180 FHD /32R-VSD22U17 -S4087 (R902530510)
ADJUSTING PIECE (122717)

ADJUSTING PIECE
(122717)


1

ADJUSTING PISTON
(122605)


2

PISTON GUIDE
(122720)


3

OPPOSED PISTON
(122607)


4

PISTON GUIDE
(122608)


5

STOP SLEEVE
(122721)


6

COMPRESSION SPRING
(122609)



Return
