A A10V O180 LA8DS /32R-VSD61N00 -S2918 (R902480085)
Axial piston variable pump O, swashplate design, open circuit, nominal pressure 280 bar, maximum pressure 350 bar. Series 32. Geometric displacement 180 cm3. Power controller with pressure cut-of and flow control, hydraulic. Beginning of control from 161 to 240 bar. Directions of rotation: clockwise (viewed on drive shaft). Seal: FKM (fluoroelastomer). Splined shaft ANSI B92.1a, standard. Mounting flange ISO 3019-1 SAE D; 4-hole.

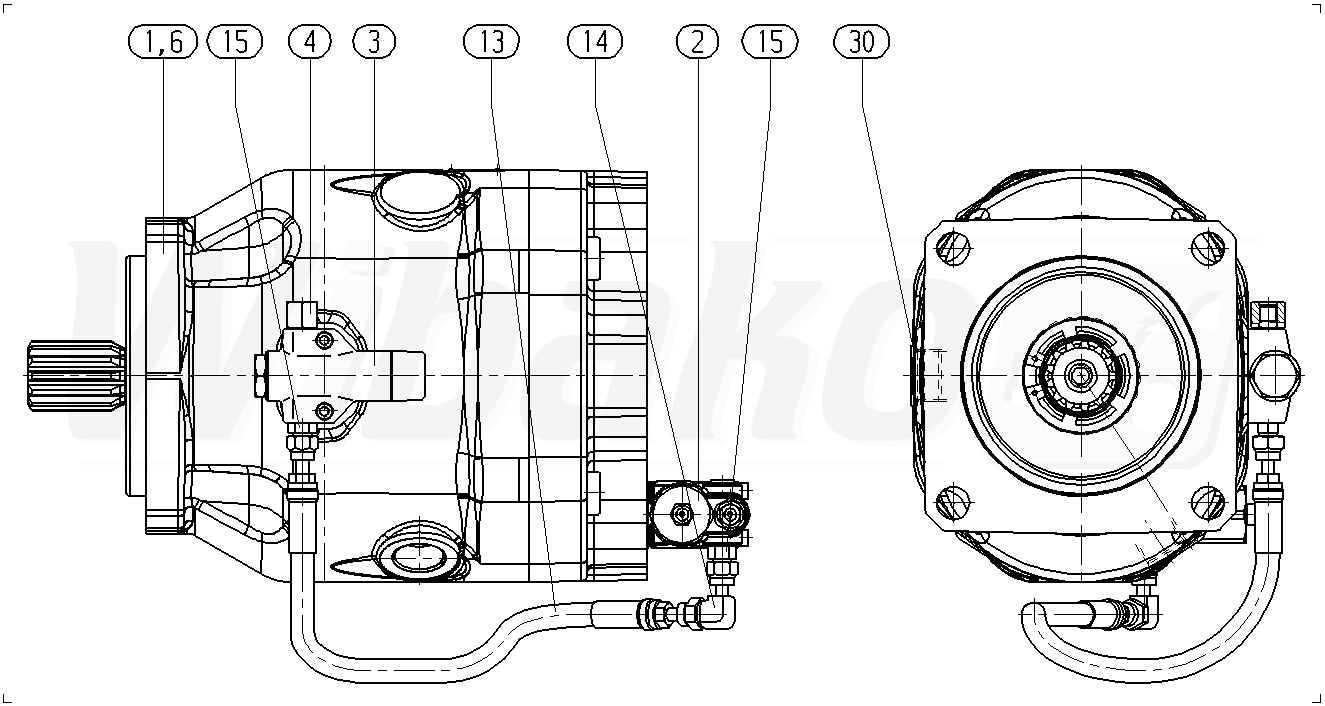

The above diagrams belong to Rexroth www.boschrexroth.com
