AA10VO180ED72/32L-VSD11N00P (R902482572)
Axial piston variable pump O, swashplate design, open circuit, nominal pressure 280 bar, maximum pressure 350 bar. Series 32. Geometric displacement 180 cm3. Pressure controller, electric, negative control U = 24 V. Directions of rotation: counter-clockwise (viewed on drive shaft). Seal: FKM (fluoroelastomer). Splined shaft ANSI B92.1a, standard. Mounting flange ISO 3019-1 SAE D; 4-hole. SAE flange ports: rear, metric fastening thread. Without through drive. DEUTSCH molded connector, 2-pin – without suppressor diode.

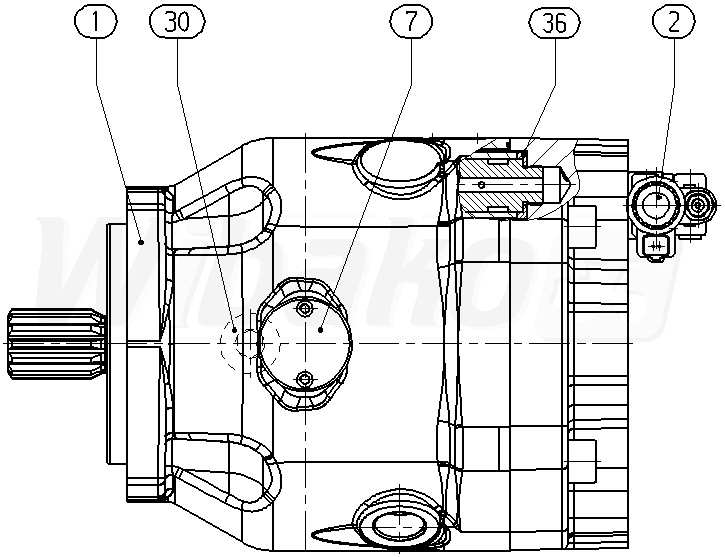

The above diagrams belong to Rexroth www.boschrexroth.com
