A A10V O63EK2DS/53R-VUC11N00H -S1765 (R902453282)
Axial piston variable pump A10VO, swashplate design, open circuit, nominal pressure 250 bar, maximum pressure 315 bar. Series 53. Geometric displacement 63 cm3. Electro-proportional control (positive control), pressure and flow control with controller cut-off (load sensing), X-T plugged, U = 24 V. Seal: FKM (fluoroelastomer). Splined shaft ISO 3019-1, reduced diameter, limited suitability for through drive. Mounting flange ISO 3019-1 (SAE) 2-hole. SAE flange ports, fastening thread metric, rear, not for through drive. Without through drive.

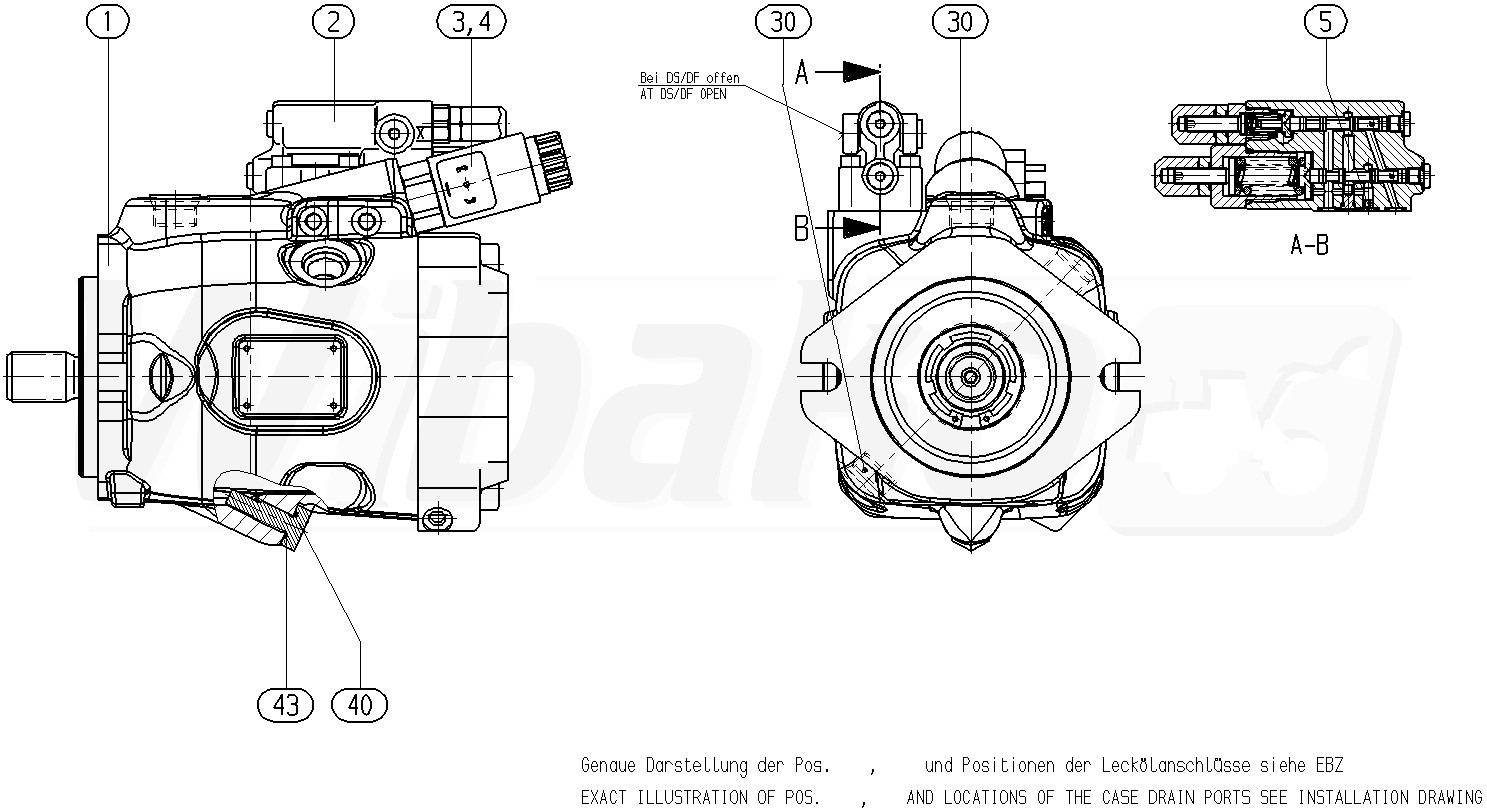

The above diagrams belong to Rexroth www.boschrexroth.com
