A11VO95LRDS/10+A4VG56DGD/32 (R909607665)

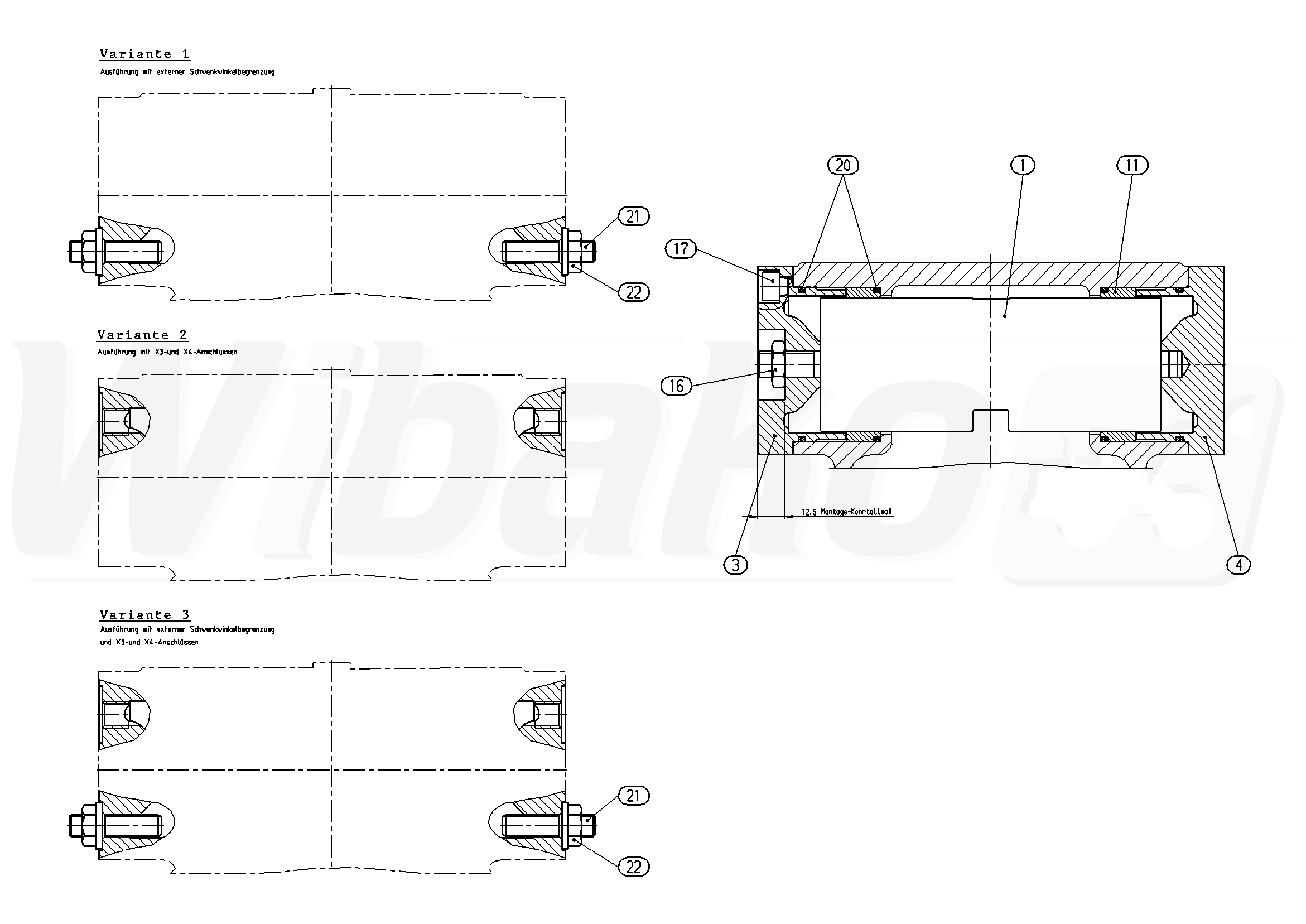

CONTROL (26131)

CONTROL
(26131)


1

POSITIONING PISTON
(10846)

Group »


3

COVER
(26151)


4

COVER
(26152)


11

BUSHING
(10847)


16

HEXAGON NUT
(10645)


17

SOCKET HEAD CAP SCREW
(10848)


20

O-RING
(10849)


98

SEAL KIT
(10850)



Return

The above diagrams belong to Rexroth www.boschrexroth.com
