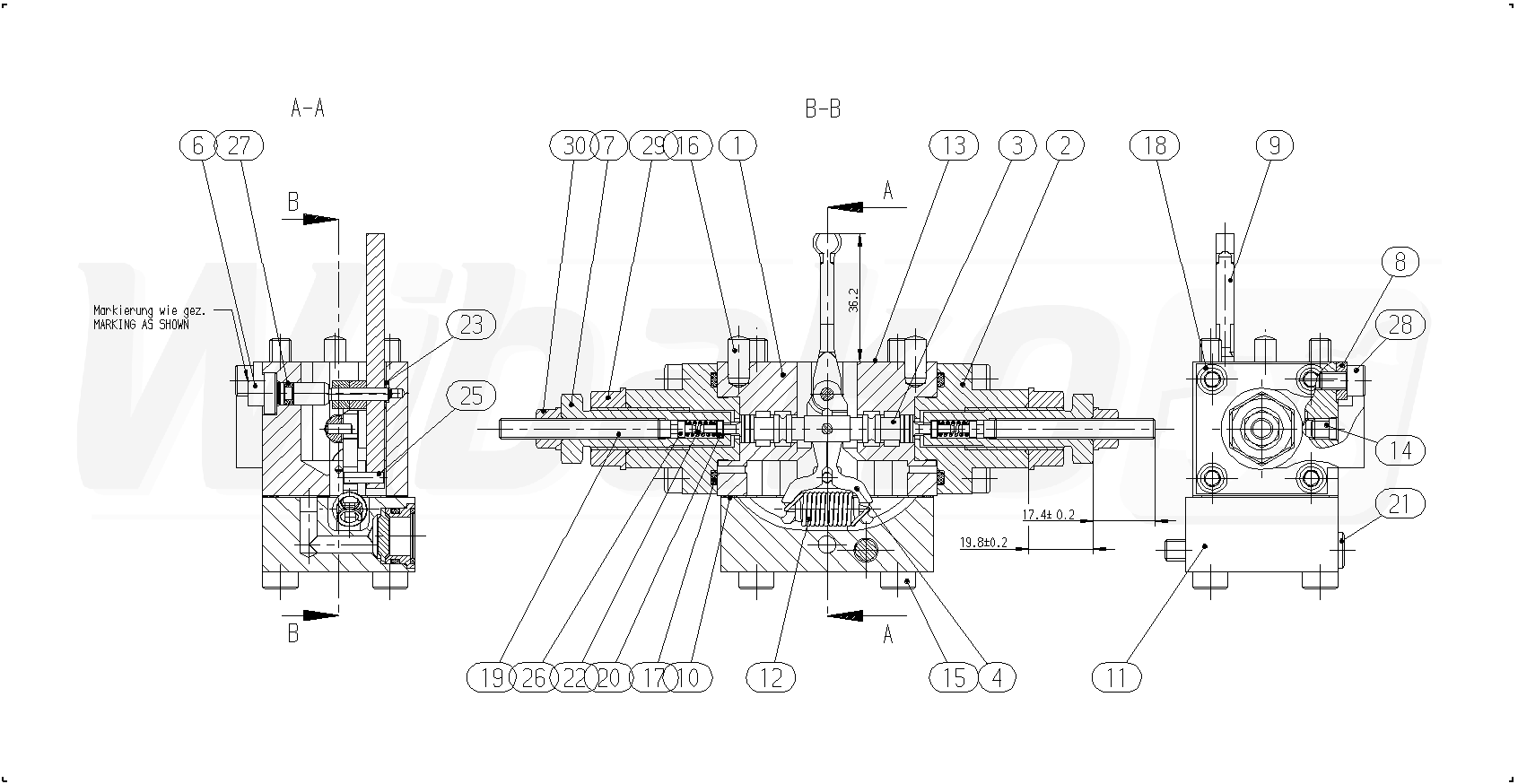

AA4VG56HD3D1/32L-NTCXXF005D-S (R902113436)
CONTROL MODULE (30218)

CONTROL MODULE
(30218)


1

HOUSING ASSEMBLY GROUP
(19638)


2

HOUSING
(30314)


3

CONTROL PISTON
(23324)


4

LEVER PAIR
(13810)


6

ECCENTRIC PIN
(13811)


7

ADJUSTING SCREW
(23318)


8

WASHER
(13410)


9

FEEDBACK LEVER
(15461)


10

SEAL
(13799)


11

COVER
(15462)


12

EXTENSION SPRING
(23317)


13

SEAL
(10783)


15

SOCKET HEAD CAP SCREW
(12219)


16

STRAIGHT PIN
(12694)


17

O-RING
(11843)


18

SOCKET HEAD CAP SCREW
(23319)


19

SETSCREW
(23320)


20

SPRING DISK
(23321)


21

SOCKET HEAD CAP SCREW
(10904)


22

COMPRESSION SPRING
(23322)


23

WASHER
(13802)


23

WASHER
(13803)


23

WASHER
(13804)


23

WASHER
(13805)


23

WASHER
(13806)


23

WASHER
(13807)


26

SPRING DISK
(23323)


27

O-RING
(10513)


28

SOCKET HEAD CAP SCREW
(13425)


29

SEALING NUT
(10399)


30

SEALING NUT
(10369)
