AA4VG56HWDL1/32R-NSCXXK043E-S (R902127171)

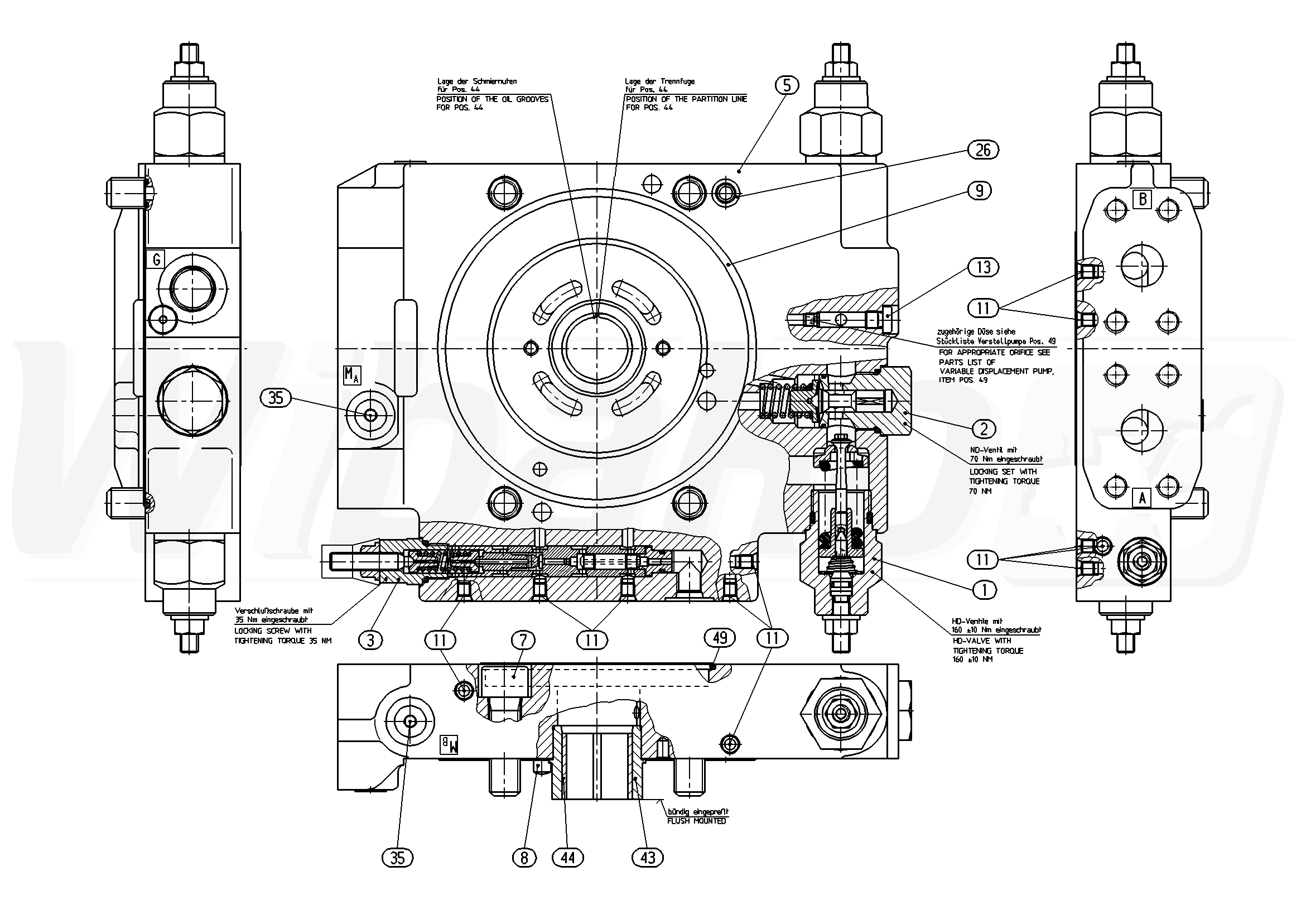

CONNECTION PLATE (30243)

CONNECTION PLATE
(30243)


1

PRESSURE RELIEF VALVE
(12208)

Group »


2

PRESSURE RELIEF VALVE
(10864)

Group »


3

PRESSURE CUT-OFF VALVE
(10865)

Group »


5

CONNECTION PLATE
(30325)


7

SOCKET HEAD CAP SCREW
(21674)


8

STRAIGHT PIN
(10869)


9

O-RING
(10870)


11

DOUBLE BREAK-OFF PLUG
(18990)


13

SCREW PLUG
(10330)


26

O-RING
(10227)


35

SCREW PLUG
(11371)


43

BUSHING
(21675)


44

BUSHING
(18567)


49

O-RING
(26141)



Return
