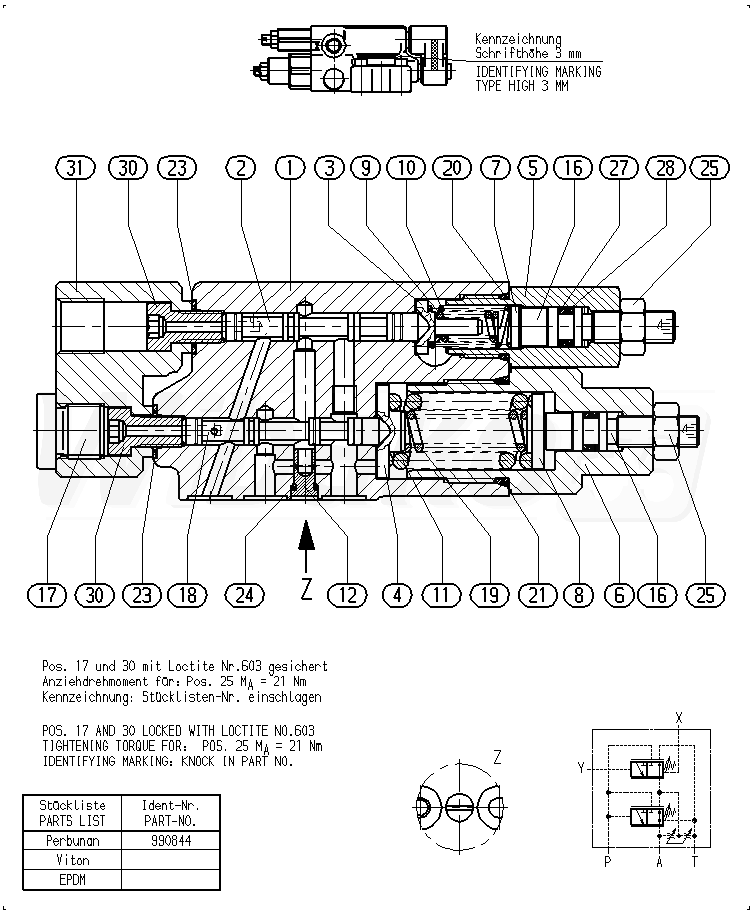

AA10VSO45DFR1/31R-PPA12N00-SO819 (R910990861)
CONTROL VALVE (118905)

CONTROL VALVE
(118905)


1

VALVE HOUSING
(109115)


2

VALVE SPOOL
(17237)


3

SPRING DISK
(11910)


4

SPRING DISK
(54701)


5

SCREW PLUG
(118906)


6

SCREW PLUG
(118907)


7

WASHER
(11913)


8

WASHER
(109117)


9

COMPRESSION SPRING
(11914)


10

COMPRESSION SPRING
(11915)


11

COMPRESSION SPRING
(13249)


12

ORIFICE
(46696)


16

STUD BOLT
(118908)


17

SCREW PLUG
(10015)


18

VALVE SPOOL
(13250)


19

COMPRESSION SPRING
(13251)


20

O-RING
(13992)


21

O-RING
(13993)


23

BONDED SEAL RING
(13991)


24

O-RING
(109118)


25

HEXAGON NUT
(10118)


27

O-RING
(10119)


28

BACKUP RING
(10121)


30

HOLLOW BOLT
(83835)


31

DOUBLE ADAPTER
(109563)



Return

The above diagrams belong to Rexroth www.boschrexroth.com
