A A10VSO 45 FHD /31R-PPA12G10 (R910967754)

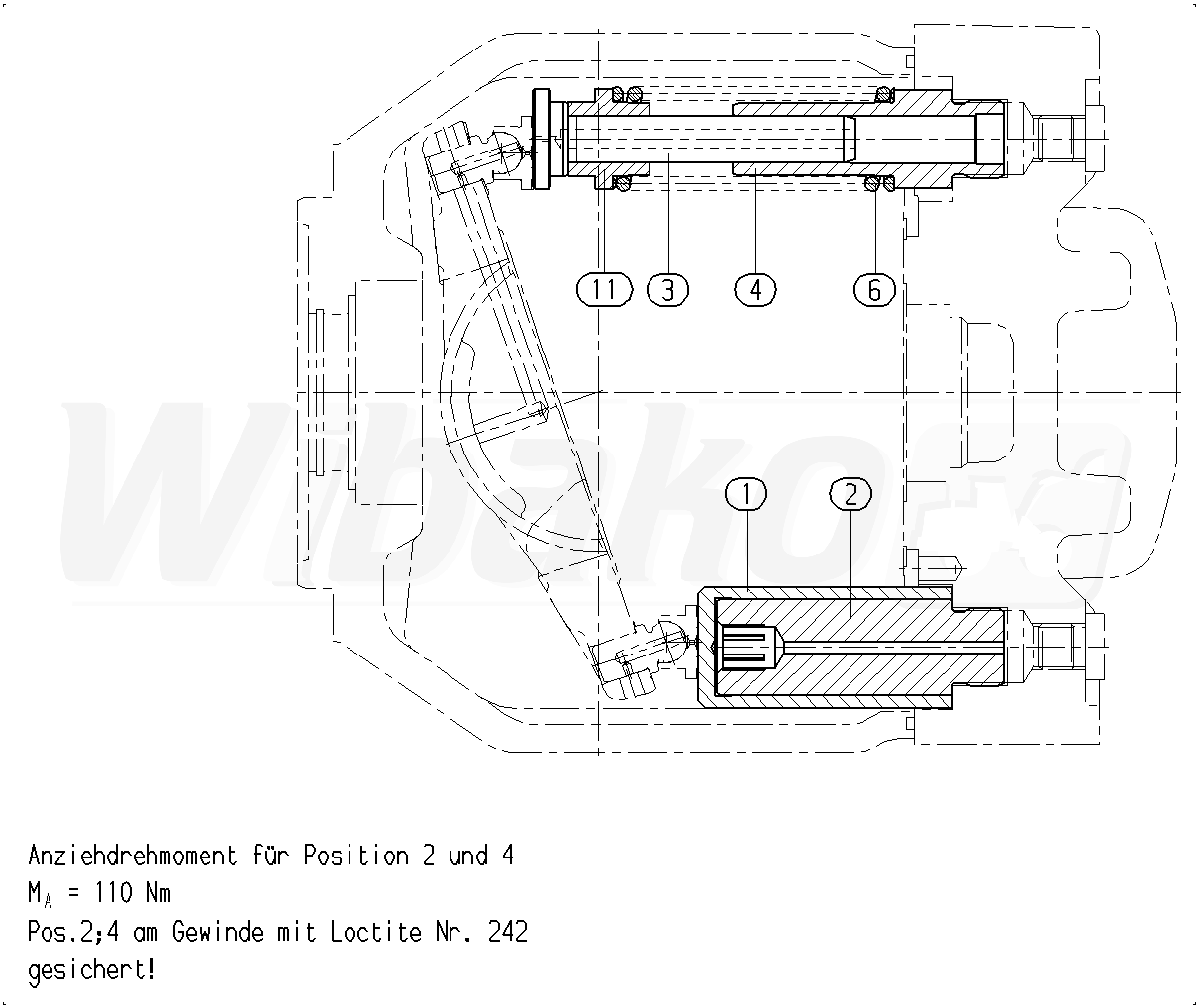

ADJUSTING PIECE (112774)

ADJUSTING PIECE
(112774)


1

ADJUSTING PISTON
(110558)


2

PISTON GUIDE
(111032)


3

OPPOSED PISTON
(13240)


4

PISTON GUIDE
(110560)


6

COMPRESSION SPRING
(112775)


11

SPRING DISK
(112776)



Return

The above diagrams belong to Rexroth www.boschrexroth.com
