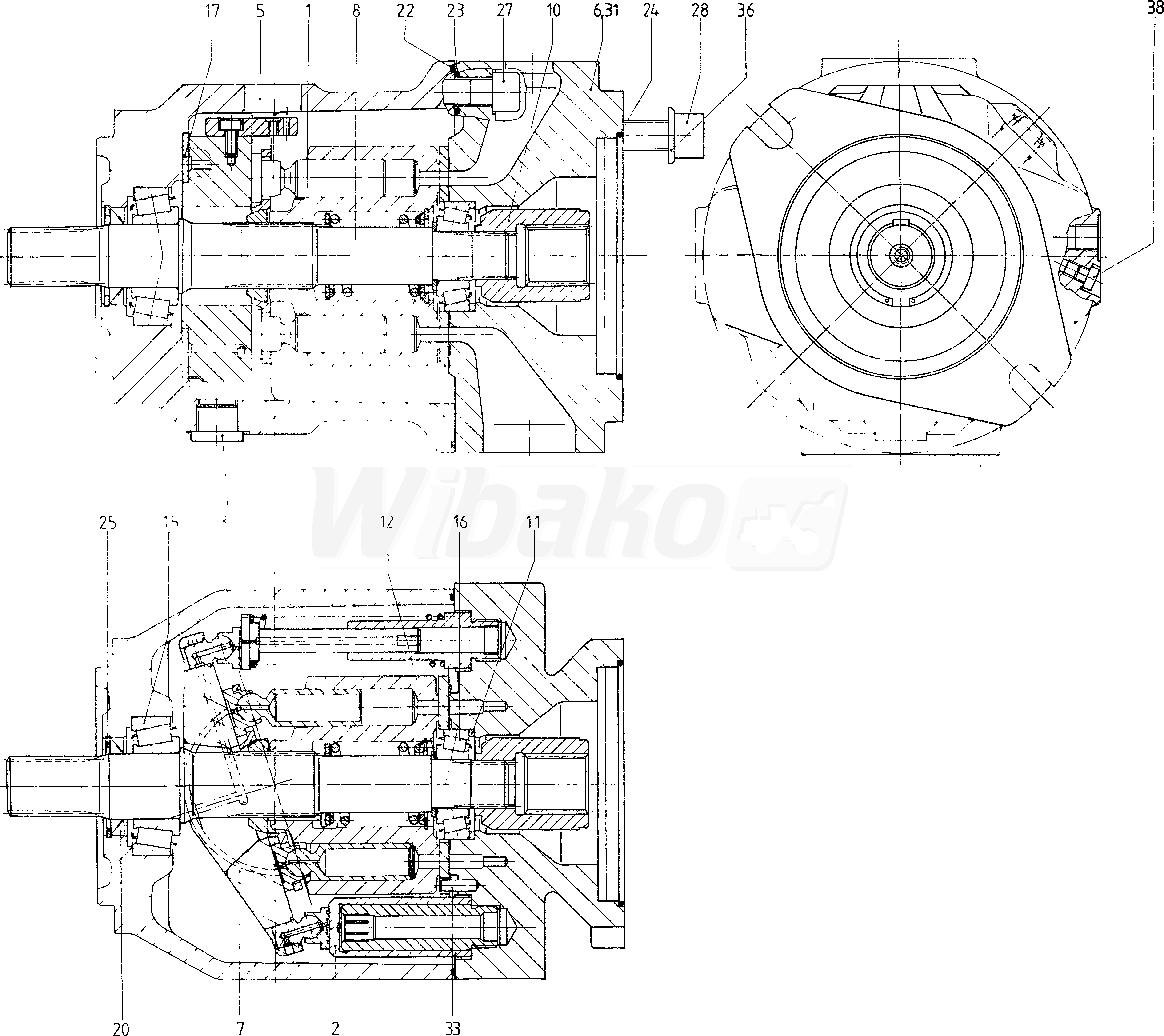

AA10VSO71DFEH/31R-PRC12KC5-SO479 (R902426755)
BASE UNIT (129127)

BASE UNIT
(129127)


1

ROTARY GROUP
(115853)

Group »


2

ADJUSTING PIECE
(115854)

Group »


5

PUMP HOUSING
(33373)


6

CONNECTION PLATE
(115882)


7

SWASH PLATE
(115856)


8

DRIVE SHAFT
(50875)


12

ADJUSTMENT SHIM
(13898)


14

STOP RING
(30735)


15

TAPERED-ROLLER BEARING
(13299)


16

TAPERED-ROLLER BEARING
(13899)


17

BEARING SHELL
(13900)


20

SHAFT SEALING RING
(10968)


22

O-RING
(13902)


23

R-RING
(27445)


24

O-RING
(20697)


25

RETAINING RING
(13303)


27

SOCKET HEAD CAP SCREW
(13904)


30

SCREW PLUG
(13231)


31

DOUBLE BREAK-OFF PLUG
(19009)


33

STRAIGHT PIN
(11892)


34

SCREW PLUG
(17849)
