AA4VG56NVD1/32L-NSC52XXX5S-S*G* (R909601318)

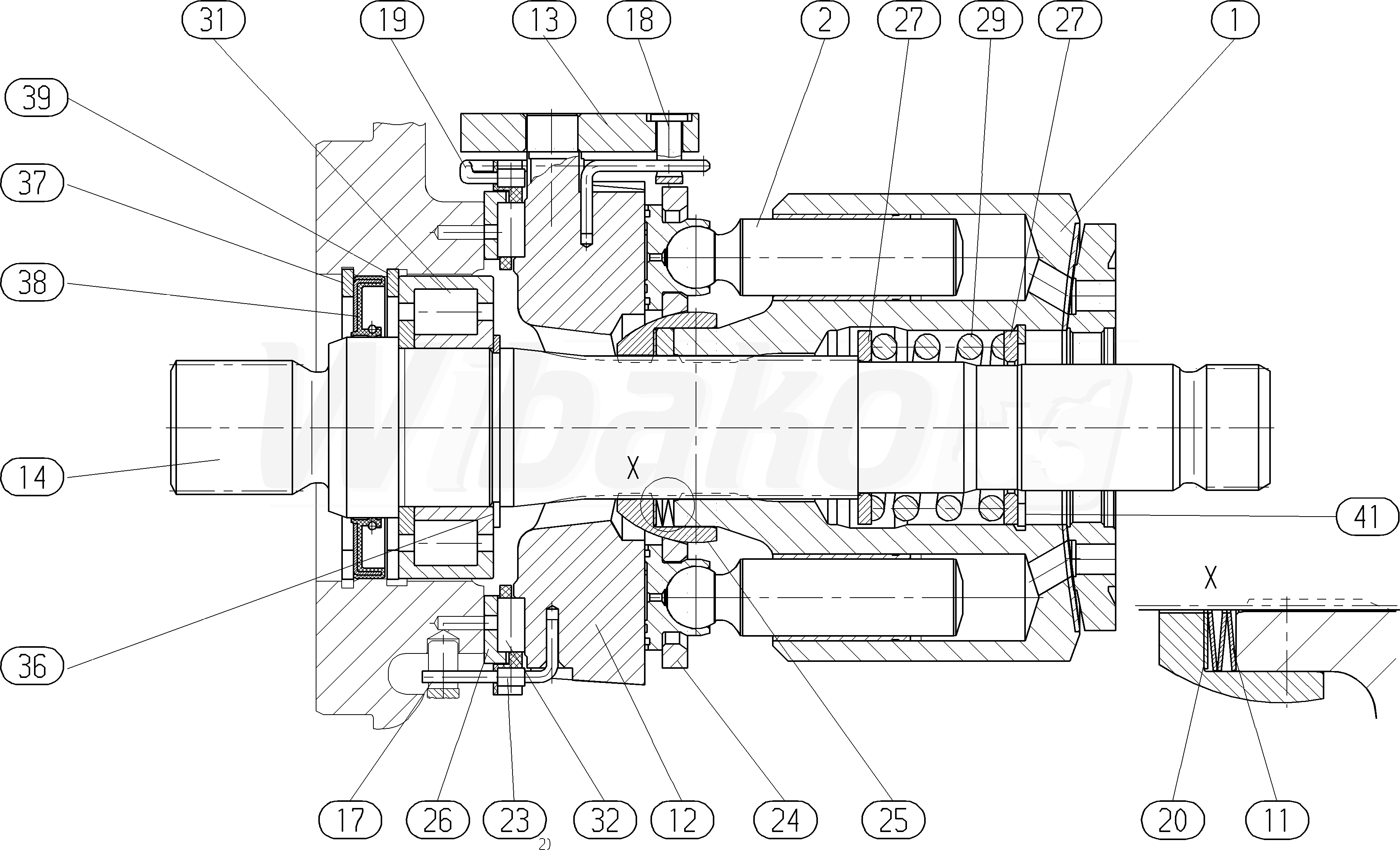

ROTARY GROUP (29572)

ROTARY GROUP
(29572)


1

CYLINDER
(29576)

Group »


2

PISTON PAD
(10835)


11

CUP-SPRING STACK
(10836)


12

CRADLE
(10820)


13

SLIDER
(10821)


14

DRIVE SHAFT
(12202)


17

WIRE
(10823)


18

PIVOT PIN
(10824)


19

WIRE
(10825)


20

SHIM RING
(10837)


20

SHIM RING
(10838)


20

SHIM RING
(10839)


20

SHIM RING
(10840)


24

RETAINING PLATE
(10841)


25

RETAINING BALL
(10842)


26

BEARING SHELL PAIR
(10826)


27

WASHER
(10843)


29

COMPRESSION SPRING
(10844)


31

CYL. ROLLER BEARING
(10827)


32

CAGE PAIR
(10828)


36

RETAINING RING
(10829)


37

RETAINING RING
(10830)


38

SHAFT SEALING RING
(10831)


39

RETAINING RING
(10832)


41

RETAINING RING
(10845)


98

SEAL KIT
(10833)



Return

The above diagrams belong to Rexroth www.boschrexroth.com
