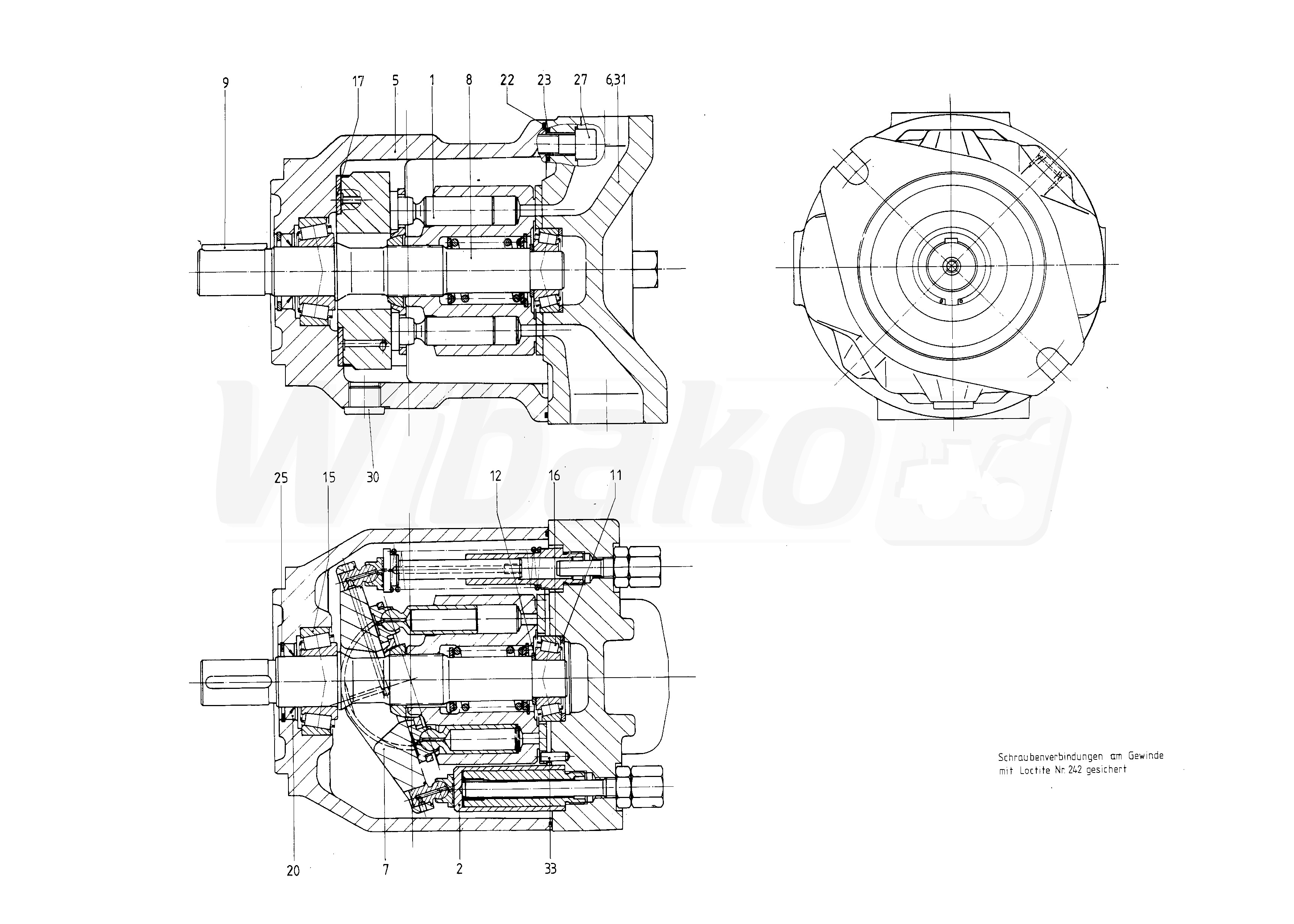

A A10VSO 71 DFR /31R-PPA12N00 -SO169 (R910949925)
(129811)


(129811)


1

ROTARY GROUP
(13892)

Group »


2

ADJUSTING PIECE
(116253)

Group »


5

PUMP HOUSING
(16561)


6

CONNECTION PLATE
(115927)


7

SWASH PLATE
(20098)

Group »


8

DRIVE SHAFT
(116163)


9

PARALLEL KEY
(16564)


12

ADJUSTMENT SHIM
(13898)


15

TAPERED-ROLLER BEARING
(13299)


16

TAPERED-ROLLER BEARING
(13899)


17

BEARING SHELL
(13900)


20

SHAFT SEALING RING
(13901)


22

O-RING
(14539)


23

R-RING
(33374)


25

RETAINING RING
(13303)


27

SOCKET HEAD CAP SCREW
(13904)


30

SCREW PLUG
(10397)


31

DOUBLE BREAK-OFF PLUG
(19009)


33

STRAIGHT PIN
(11892)


34

SCREW PLUG
(16353)


23


(33374)


25


(13303)


27


(13904)


30


(10397)


31


(19009)


33


(11892)
