A A10VSO 71 DFR1/31L-VPA42N00 CS4844 (R902551226)

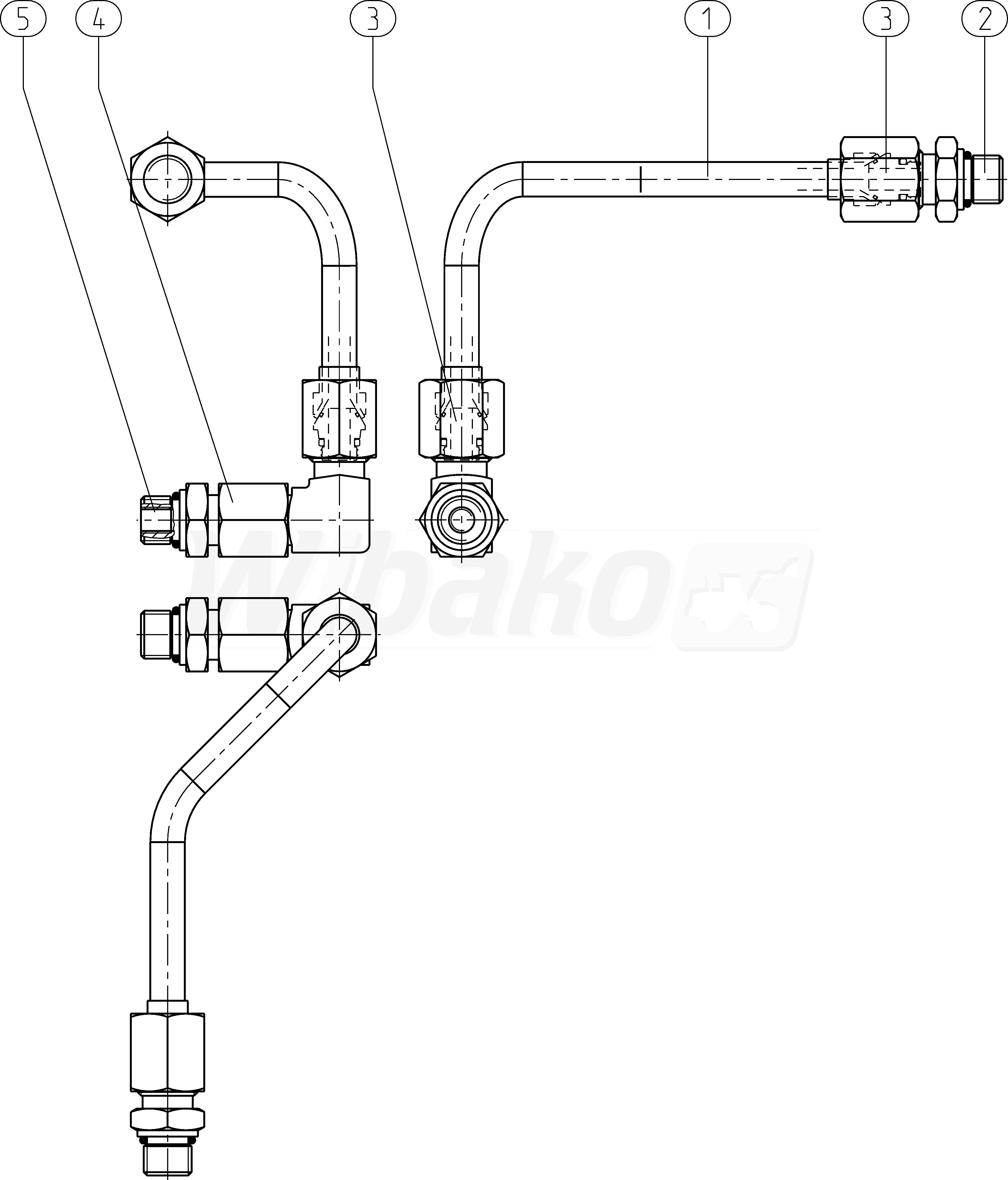

PIPING (129919)

PIPING
(129919)


1

PIPE
(117273)

Group »


2

THREADED FASTENER
(13285)


3

INTERMEDIATE RING
(13286)


4

THREADED FASTENER
(17391)


5

THREADED FASTENER
(17392)



Return

The above diagrams belong to Rexroth www.boschrexroth.com
