A A10VSO 71 DR /32R-VPB12N00 -S1550 (R902477419)

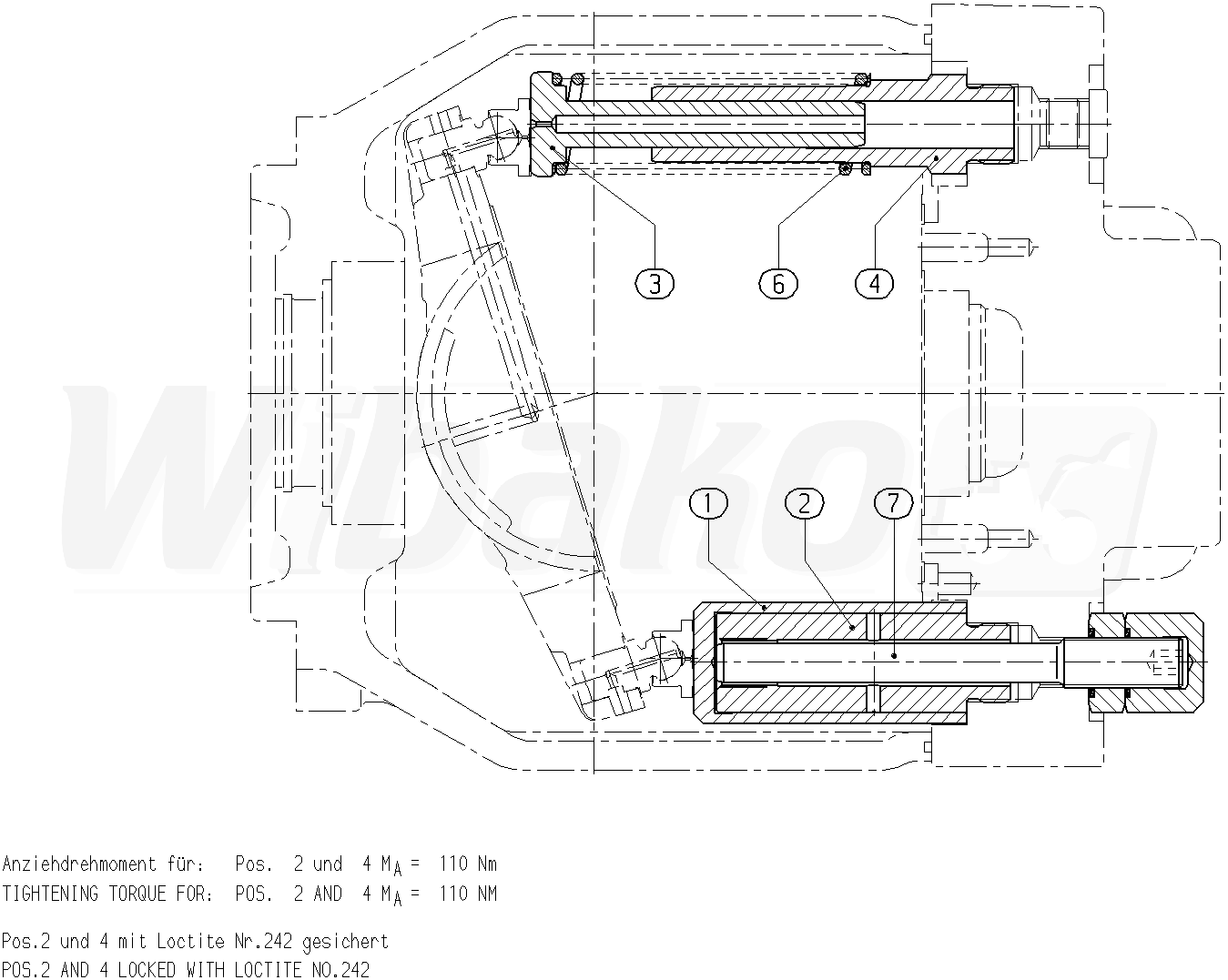

ADJUSTING PIECE (130427)

ADJUSTING PIECE
(130427)


1

ADJUSTING PISTON
(51123)


2

PISTON GUIDE
(100878)


3

OPPOSED PISTON
(13917)


4

PISTON GUIDE
(100879)


6

COMPRESSION SPRING
(13919)


7

STOP SCREW
(116255)



Return
