A A10VSO 71 DRF /32R-VSB22U99 -S2738 (R902474346)

1

BASE UNIT
(130458)

Group »


2

CONTROL VALVE
(16566)

Group »


4

ADAPTER
(15471)

Group »


5

COVER
(118878)

Group »


6

ADAPTER
(130485)

Group »


7

SOCKET HEAD CAP SCREW
(10002)


8

SEAL
(10001)


30

SCREW PLUG
(10961)


34

SCREW PLUG
(17849)



Return

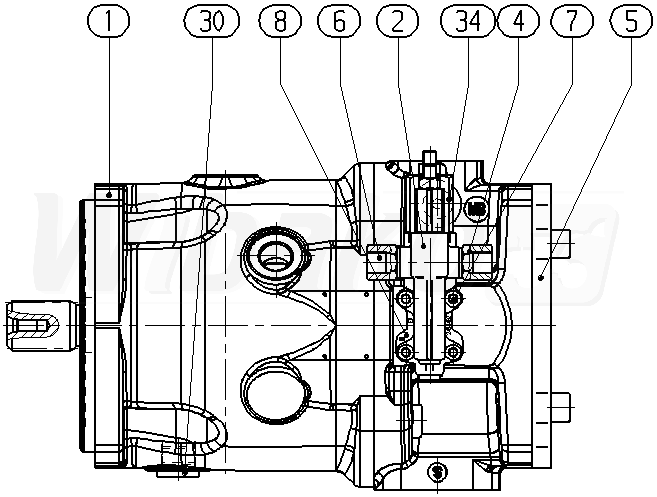

The above diagrams belong to Rexroth www.boschrexroth.com
