A A10VSO 71 DSE /31W-PPA12T200 (R910968788)

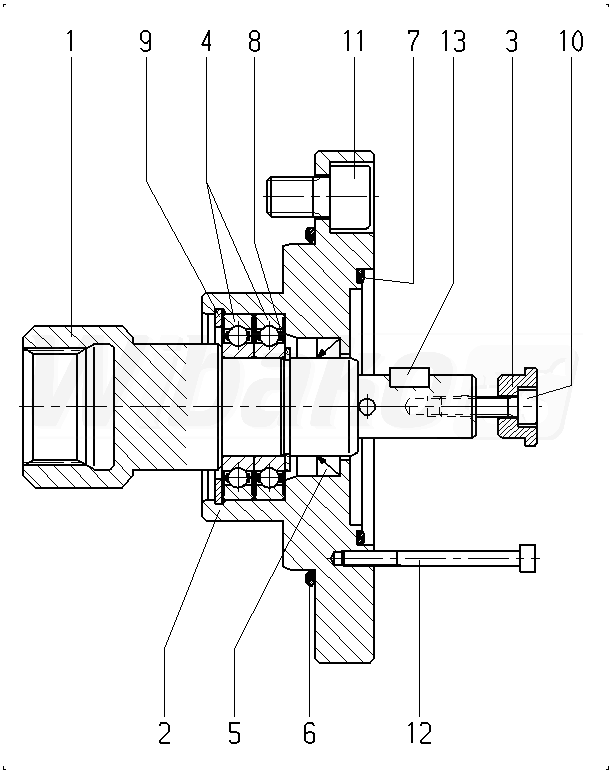

TACHOMETER DRIVE SHAFT (130710)

TACHOMETER DRIVE SHAFT
(130710)


1

TACHOMETER SHAFT
(130716)


2

INTERMEDIATE FLANGE
(130717)


3

PRESSURE DISK
(127543)


4

DEEP-GROOVE BALL BEARING
(21040)


5

SHAFT SEALING RING
(16758)


6

O-RING
(13985)


7

O-RING
(127545)


8

RETAINING RING
(21042)


9

RETAINING RING
(21043)


10

SOCKET HEAD CAP SCREW
(21044)


11

SOCKET HEAD CAP SCREW
(11867)


12

SOCKET HEAD CAP SCREW
(18316)


13

PARALLEL KEY
(130718)



Return

The above diagrams belong to Rexroth www.boschrexroth.com
