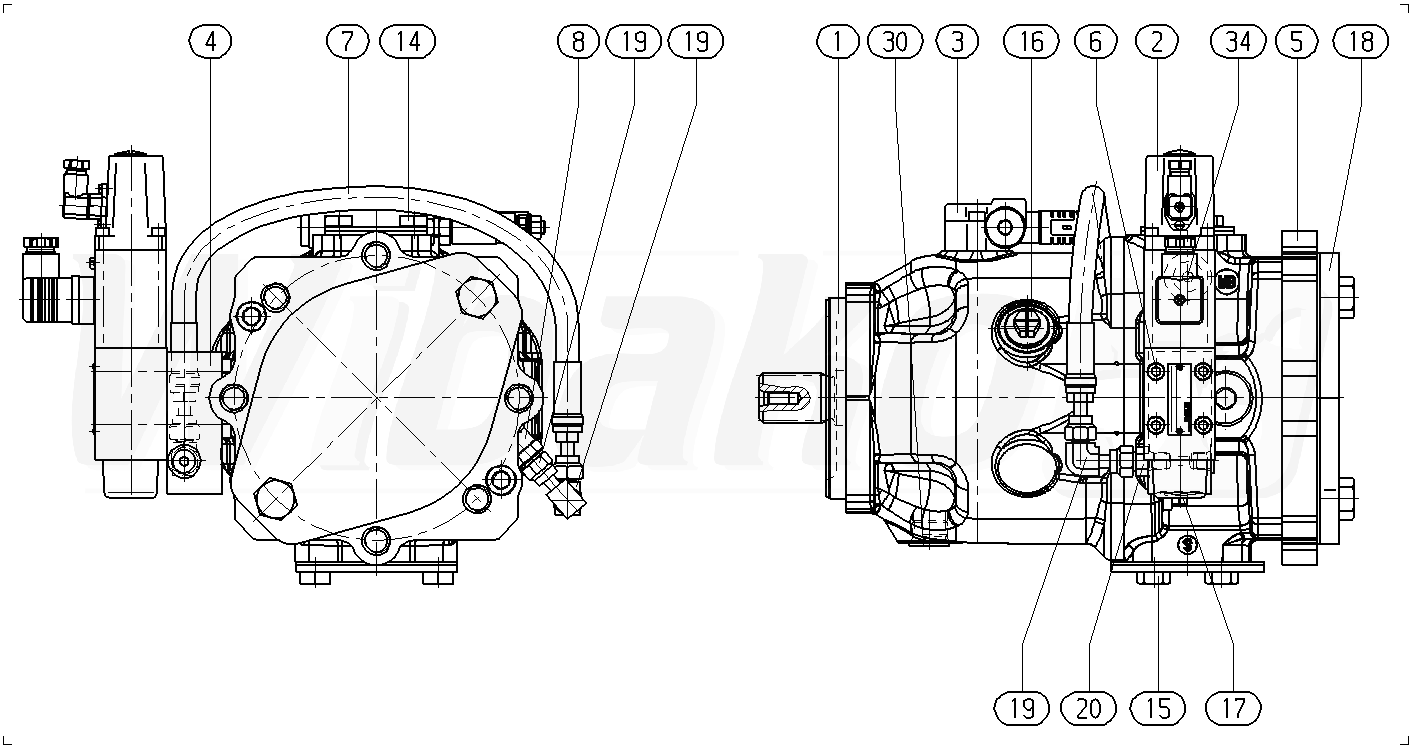

A A10VSO 71 FE1 /32R-VSD32U07 -S2881 (R902478365)

1

BASE UNIT
(130735)

Group »


2

PROPORTIONAL DIRECTIONAL VALVE
(107552)

Group »


3

INDUCTIVE POS.TRANSDUCER
(83746)

Group »


4

INTERMEDIATE PLATE
(110575)

Group »


5

ATTACHMENT KIT
(130626)


6

SOCKET HEAD CAP SCREW
(20134)


7

HOSE
(113414)


8

THREADED FASTENER
(130736)

Group »


14

FLANGE COVER
(13972)


15

FLANGE COVER
(20075)


16

SEAL SCREW
(13974)


17

GUARD PLUG
(21015)


18

FLANGE COVER
(30995)


19

ELBOW UNION
(113416)


20

MALE CONNECTOR
(113415)


30

SCREW PLUG
(13231)


34

SCREW PLUG
(17849)



Return

The above diagrams belong to Rexroth www.boschrexroth.com
