A A10VSO 71 FHD /31R-PPA12K26 (R910961706)

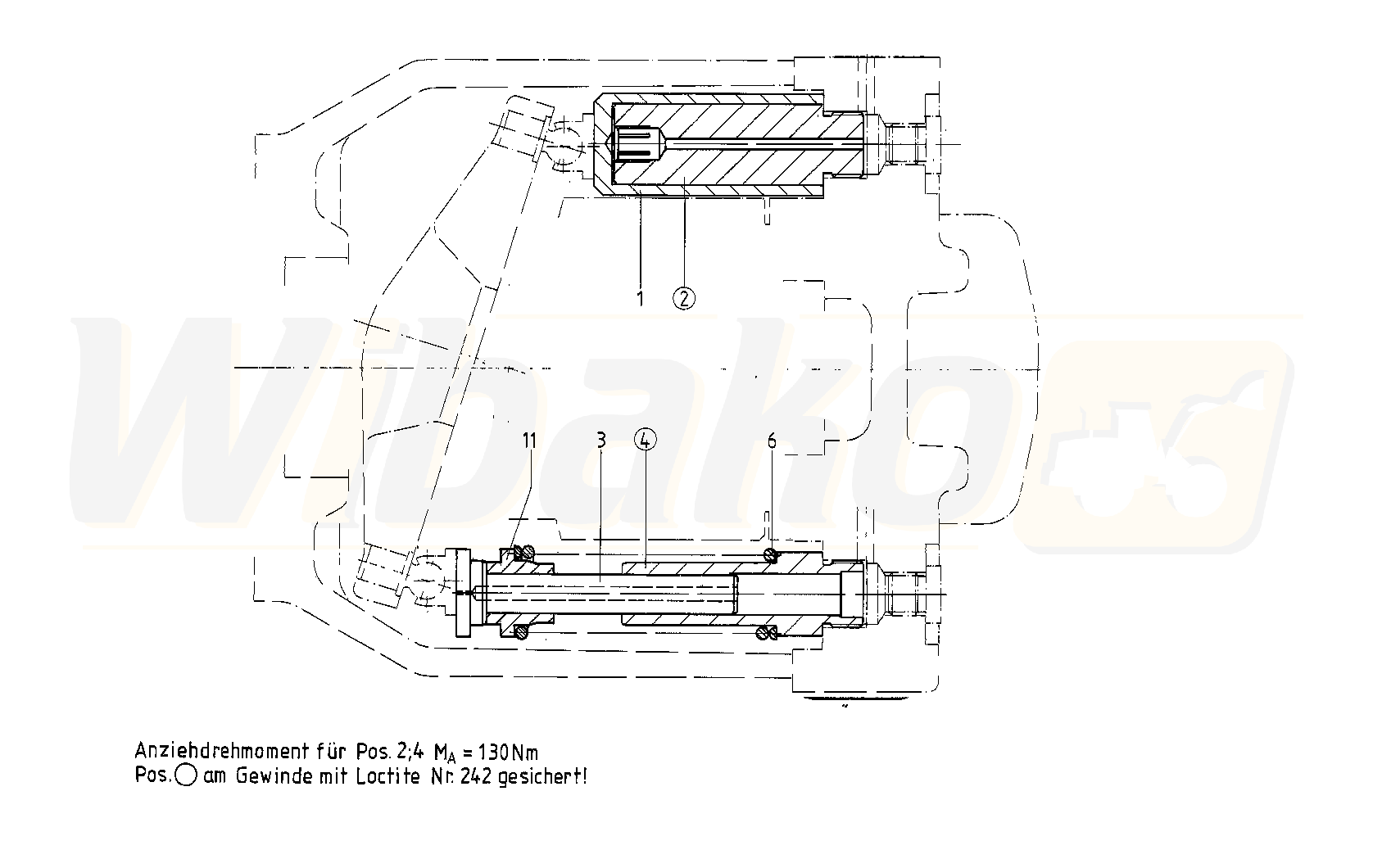

ADJUSTING PIECE (118022)

ADJUSTING PIECE
(118022)


1

ADJUSTING PISTON
(51123)


2

PISTON GUIDE
(51124)


3

OPPOSED PISTON
(13917)


4

PISTON GUIDE
(51125)


6

COMPRESSION SPRING
(118024)


11

SPRING DISK
(118025)



Return

The above diagrams belong to Rexroth www.boschrexroth.com
