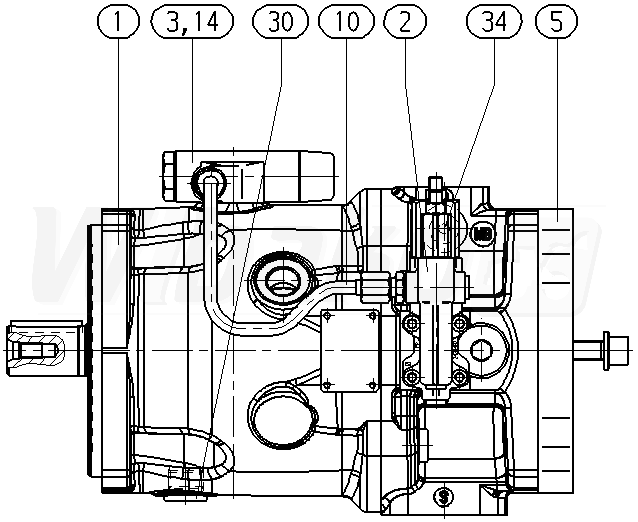

A A10VSO 71LA7D /32R-VPB32U68 (R902459072)

1

BASE UNIT
(130805)

Group »


2

CONTROL VALVE
(15470)

Group »


3

CONTROL VALVE
(83809)

Group »


5

ATTACHMENT KIT
(129207)


10

PIPING
(130759)

Group »


14

SCREW PLUG
(11928)


30

SCREW PLUG
(10961)


34

SCREW PLUG
(17849)



Return

The above diagrams belong to Rexroth www.boschrexroth.com
