AA10VSO100DFE/31R-PPA12K25-SO281 (R910930501)

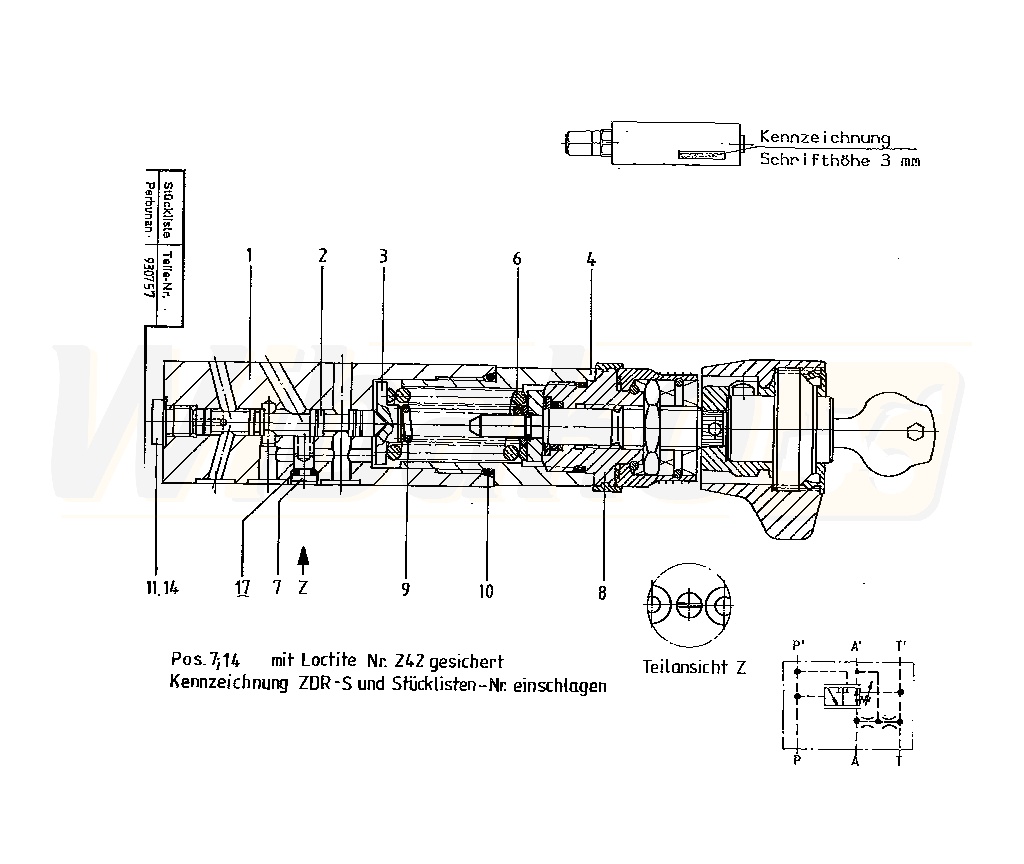

CONTROL VALVE (130884)

CONTROL VALVE
(130884)


1

VALVE HOUSING
(130886)


2

VALVE SPOOL
(13250)


3

SPRING DISK
(54701)


4

SCREW PLUG
(108653)


6

COMPRESSION SPRING
(13249)


7

ORIFICE
(46696)


8

CONTROL
(125715)

Group »


9

COMPRESSION SPRING
(13251)


10

O-RING
(13993)


11

BONDED SEAL RING
(13991)


14

SCREW PLUG
(11918)


17

O-RING
(109118)



Return

The above diagrams belong to Rexroth www.boschrexroth.com
