A A10VSO100 DFE /31R-PPA12K27 -SO372 (R910945560)

Axial piston variable pump A10VS, swashplate design, open circuit, nominal pressure 280 bar, maximum pressure 350 bar. Series 31. Geometric displacement 100 cm3. DEUTSCH - molded connector, 2-pin, without suppressor diode.

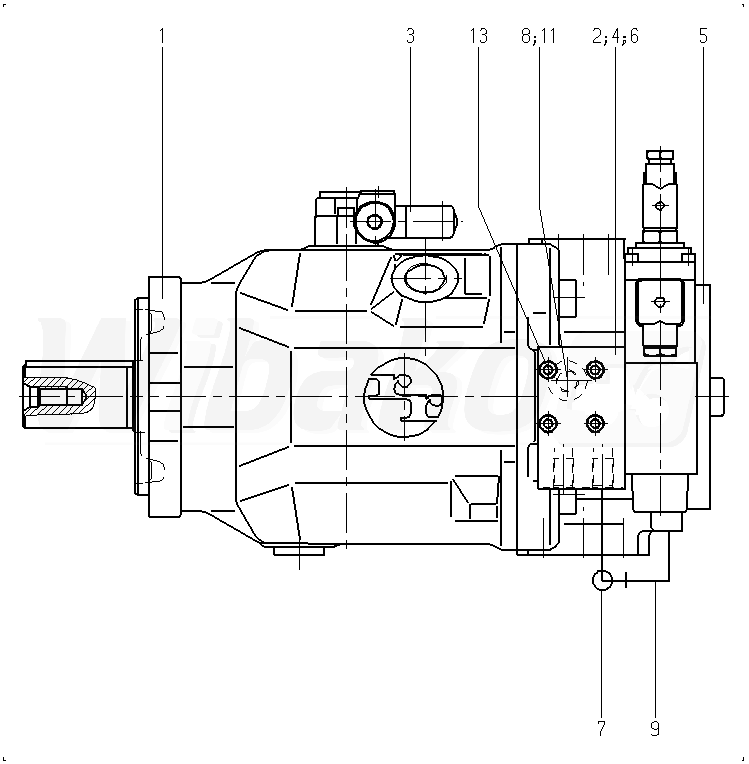

1

BASE UNIT
(130903)

Group »


2

ELECTRONIC CONTROLS
(113511)

Group »


3

INDUCTIVE POS.TRANSDUCER
(83746)

Group »


4

INTERMEDIATE PLATE
(126591)

Group »


5

SEALING COVER
(129019)

Group »


6

SOCKET HEAD CAP SCREW
(61153)


7

PIPING
(130883)

Group »


13

SOCKET HEAD CAP SCREW
(12481)



Return

The above diagrams belong to Rexroth www.boschrexroth.com
