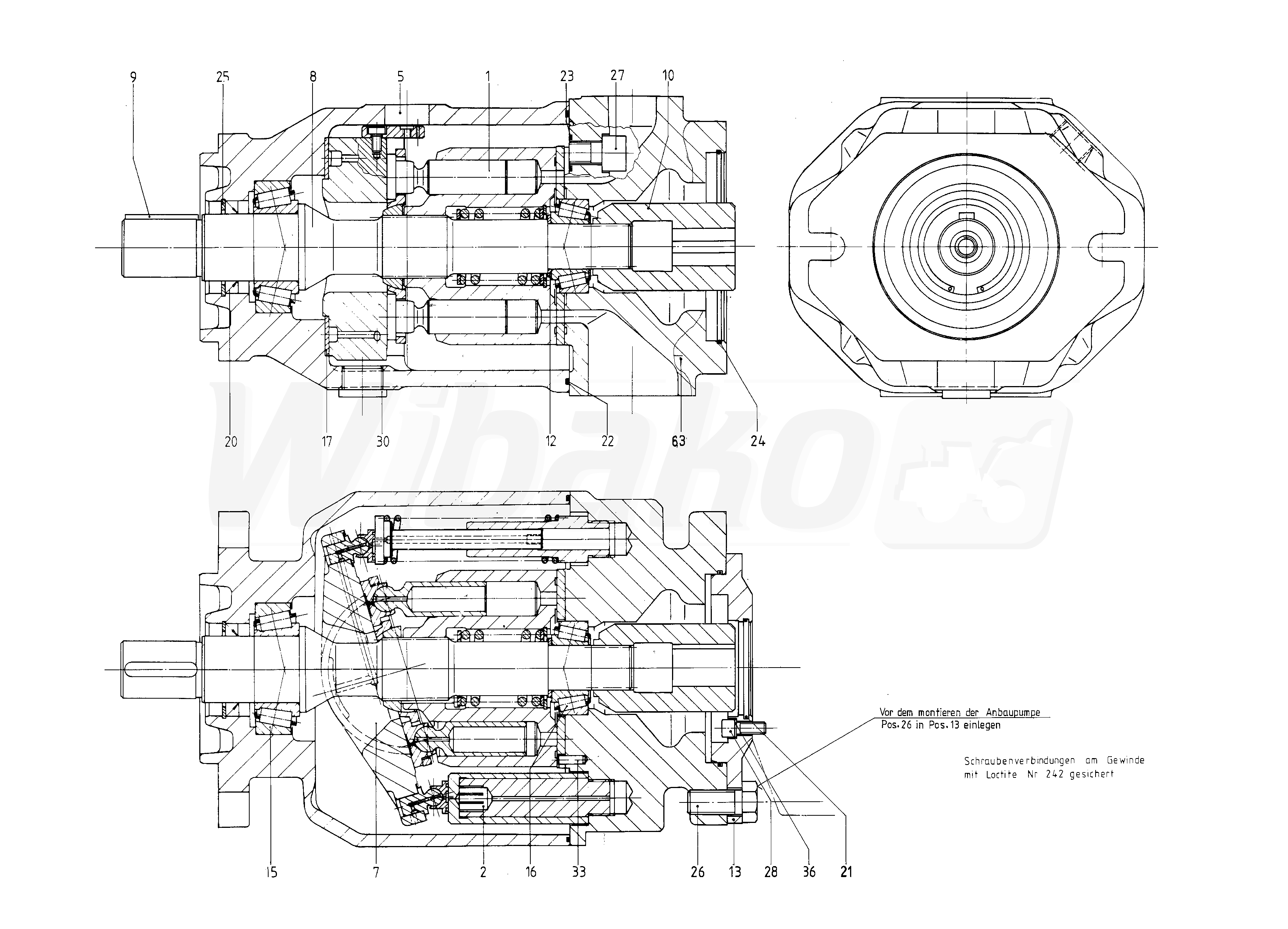

A A10VSO100 DFE /31R-PPA12K57 (R910935980)
BASE UNIT (130931)

BASE UNIT
(130931)


1

ROTARY GROUP
(44009)

Group »


2

ADJUSTING PIECE
(44010)

Group »


5

PUMP HOUSING
(44011)


6

CONNECTION PLATE
(130890)


7

SWASH PLATE
(44013)


8

DRIVE SHAFT
(119840)


9

PARALLEL KEY
(15791)


10

HUB
(130932)


12

ADJUSTMENT SHIM
(15478)


13

INTERMEDIATE FLANGE
(129416)


14

STOP RING
(44014)


15

TAPERED-ROLLER BEARING
(15479)


16

TAPERED-ROLLER BEARING
(15480)


17

BEARING SHELL
(15481)


20

ROTARY SHAFT LIP SEAL
(10984)


21

O-RING
(10045)


22

O-RING
(15483)


23

R-RING
(28881)


24

O-RING
(83945)


25

RETAINING RING
(11384)


26

HEXAGON SCREW
(130933)


27

SOCKET HEAD CAP SCREW
(15484)


28

SOCKET HEAD CAP SCREW
(26326)


30

SCREW PLUG
(14491)


31

DOUBLE BREAK-OFF PLUG
(19009)


33

STRAIGHT PIN
(11892)


34

SCREW PLUG
(17849)


36

BONDED SEAL RING
(13991)
