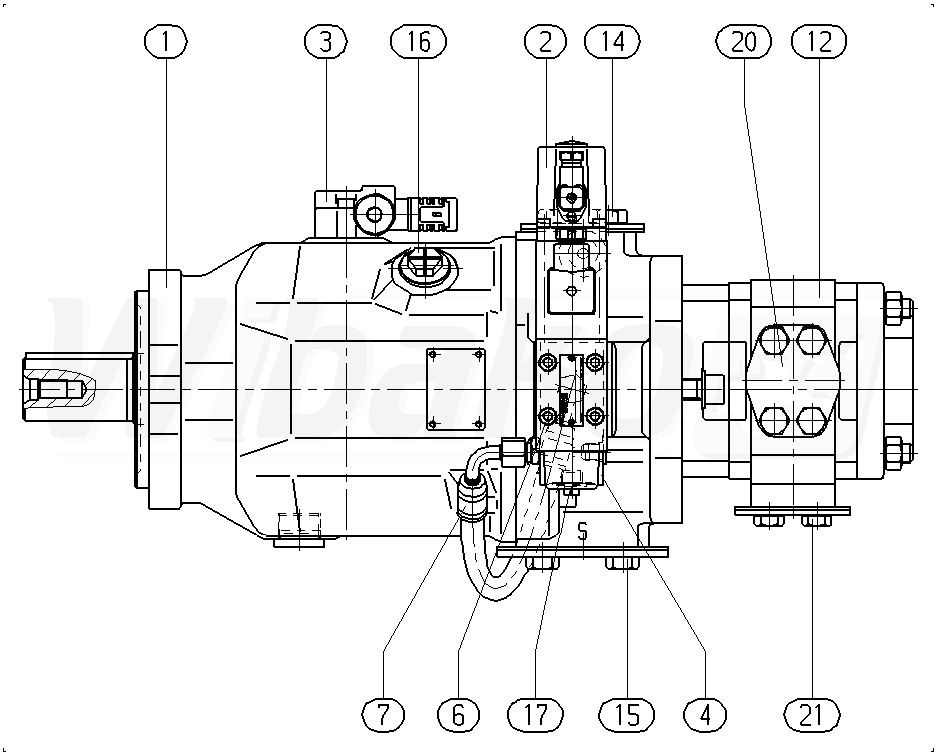

AA10VSO100DFE/31R-PPA12X10-SO479 (R902431490)

Axial piston variable pump A10VS, swashplate design, open circuit, nominal pressure 280 bar, maximum pressure 350 bar. Series 31. Geometric displacement 100 cm3. DEUTSCH - molded connector, 2-pin, without suppressor diode.
1

BASE UNIT
(130941)

Group »


2

ELECTRONIC CONTROLS
(113511)

Group »


3

INDUCTIVE POS.TRANSDUCER
(83746)

Group »


4

INTERMEDIATE PLATE
(119696)

Group »


6

SOCKET HEAD CAP SCREW
(105296)


7

HOSE ASSEMBLY
(119697)

Group »


12

GEAR PUMP
(127498)


14

FLANGE COVER
(15525)


15

FLANGE COVER
(19927)


16

SEAL SCREW
(15757)


17

GUARD PLUG
(21015)


20

FLANGE COVER
(106946)


21

FLANGE COVER
(19795)


61

SOCKET HEAD CAP SCREW
(15583)


62

WASHER
(16452)



Return

The above diagrams belong to Rexroth www.boschrexroth.com
