AA10VSO100DFLR/31R-PSA12H00-SO160 (R902413281)

Axial piston variable pump , swashplate design, open circuit, nominal pressure 280 bar, maximum pressure 350 bar. Series 31. High-speed version. Geometric displacement 10 cm3. Drive splined shaft ANSI B92.1a.

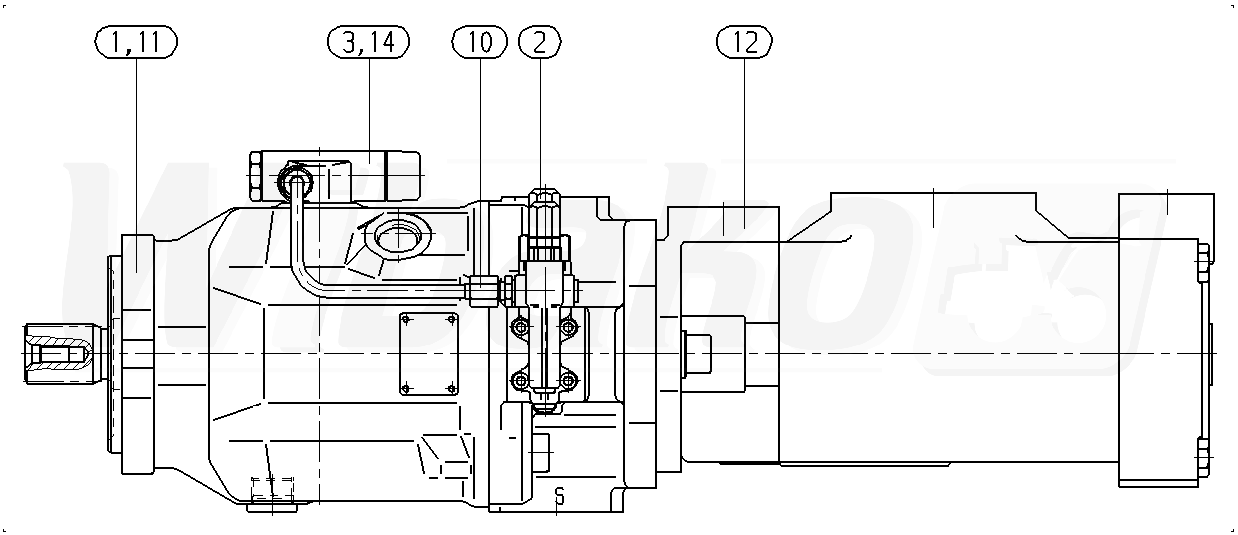

1

BASE UNIT
(131402)

Group »


2

CONTROL VALVE
(13977)

Group »


3

CONTROL VALVE
(13212)

Group »


10

PIPING
(78822)

Group »


11

POWER DIAGRAM
(120086)


12

VANE PUMP
(131403)


14

SCREW PLUG
(11371)


61

HEXAGON SCREW
(30994)



Return

The above diagrams belong to Rexroth www.boschrexroth.com
