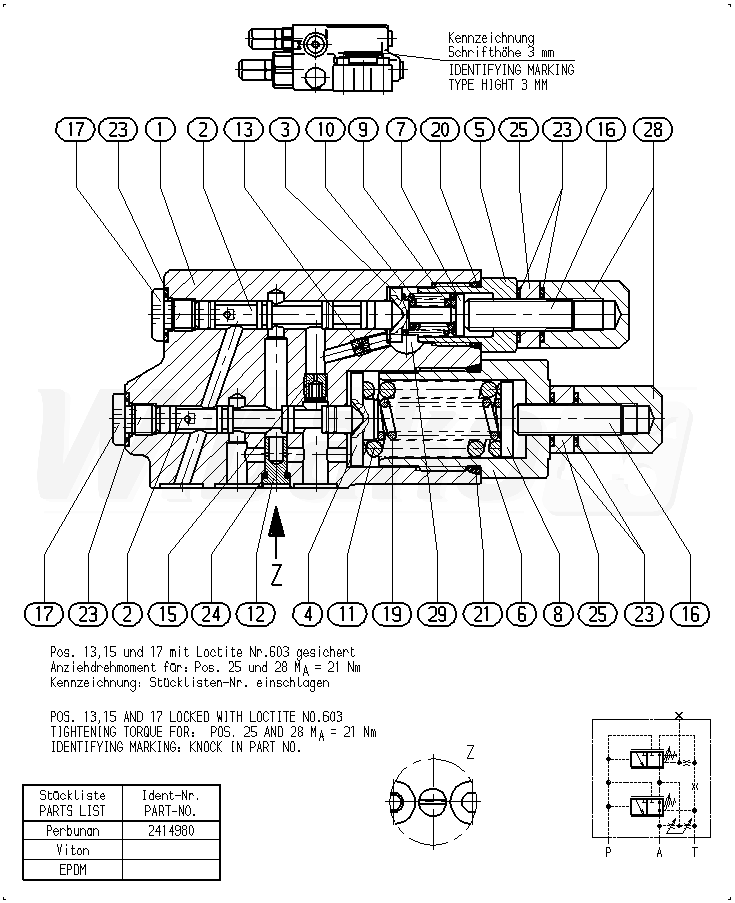

AA10VSO100DR/31R-PPA12L30-SO217 (R910962034)
CONTROL VALVE (131797)

CONTROL VALVE
(131797)


1

VALVE HOUSING
(115164)


2

VALVE SPOOL
(13250)


3

SPRING DISK
(11910)


4

SPRING DISK
(54701)


5

SCREW PLUG
(54702)


6

SCREW PLUG
(109116)


7

WASHER
(11913)


8

WASHER
(109117)


9

COMPRESSION SPRING
(11914)


10

COMPRESSION SPRING
(11915)


11

COMPRESSION SPRING
(13249)


12

ORIFICE
(46696)


13

NOZZLE
(14546)


15

NOZZLE
(13923)


16

SETSCREW
(54704)


17

SCREW PLUG
(11918)


19

COMPRESSION SPRING
(13251)


20

O-RING
(13992)


21

O-RING
(13993)


23

BONDED SEAL RING
(13991)


24

O-RING
(109118)


25

NUT
(14286)


28

CAP NUT
(14287)


29

SCREW PLUG
(11371)



Return
