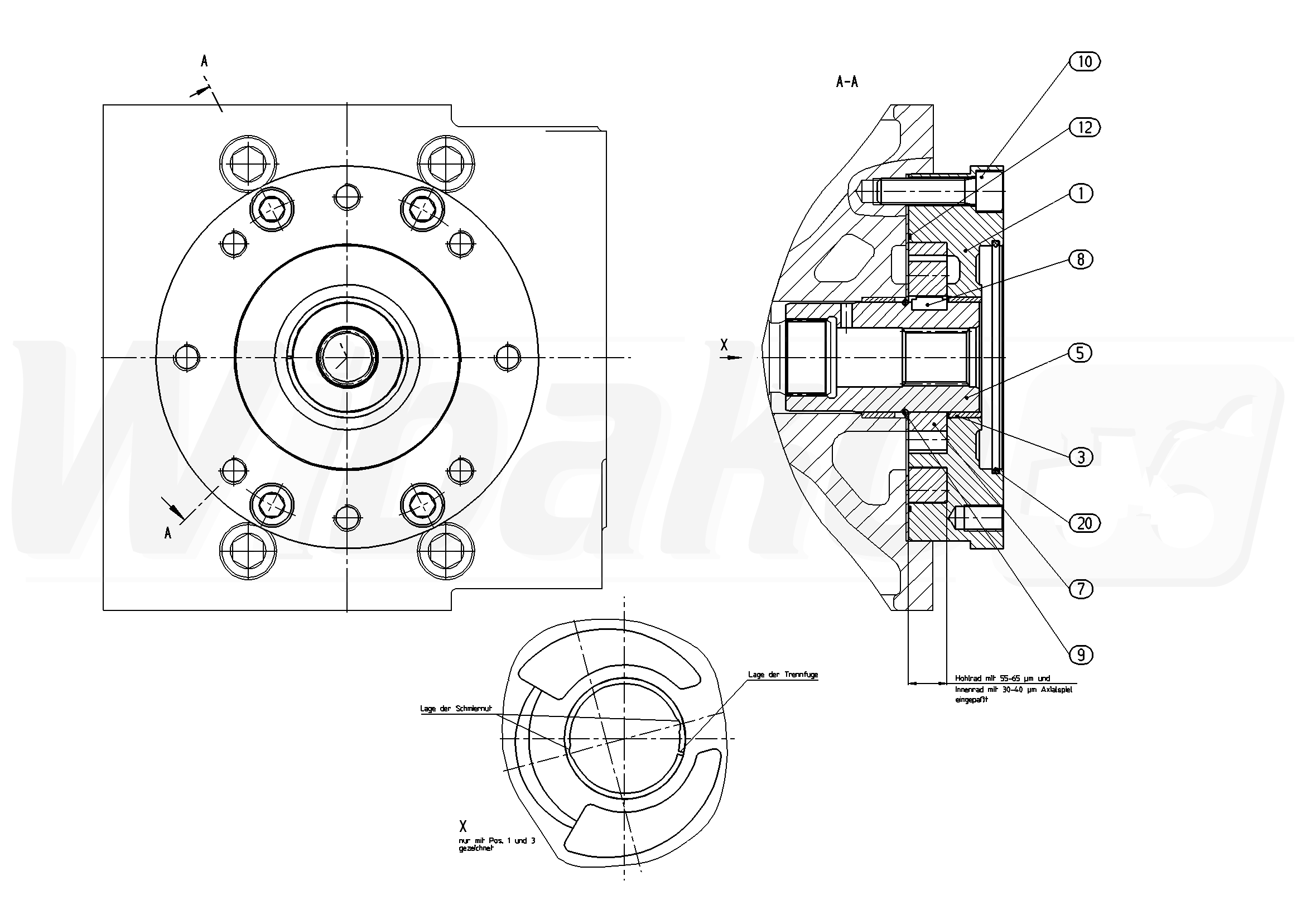

A11VLO190DRG/11R+A4VG140HD1DM1/32-K (R902089016)
INTERNAL GEAR PUMP (31053)

INTERNAL GEAR PUMP
(31053)


1

INTERMEDIATE FLANGE
(31129)


3

BUSHING
(19247)


5

THROUGH DRIVE SHAFT
(31130)


7

WHEEL SET
(24832)


8

PARALLEL KEY
(24833)


9

SNAP RING
(11165)


10

SOCKET HEAD CAP SCREW
(16315)


12

KANTSEAL
(14379)


20

O-RING
(26141)



Return

The above diagrams belong to Rexroth www.boschrexroth.com
