AA10VSO140DFR/31L-PPB12N00-SO169 (R910937572)

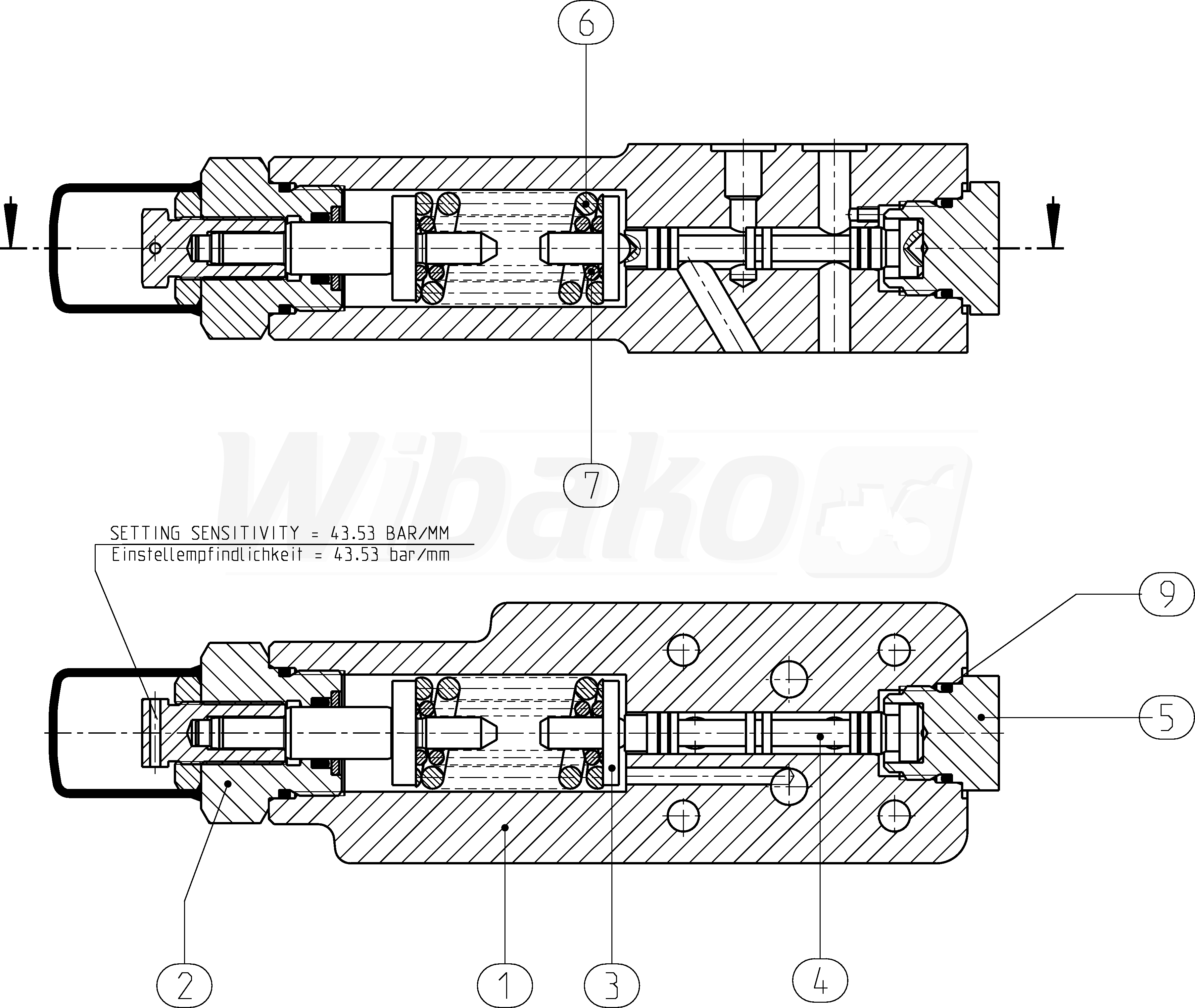

CONTROL VALVE (132889)

CONTROL VALVE
(132889)


1

VALVE HOUSING
(106860)


2

CONTROL
(10100)

Group »


3

SPRING DISK
(10101)


4

VALVE SPOOL
(10102)


5

SCREW PLUG
(20731)


6

COMPRESSION SPRING
(10103)


7

COMPRESSION SPRING
(10104)


9

O-RING
(10123)


61

PLATE
(36093)


62

PLATE
(36093)


91

NAMEPLATE
(10107)


92

GROOVED NAIL
(36094)



Return

The above diagrams belong to Rexroth www.boschrexroth.com
