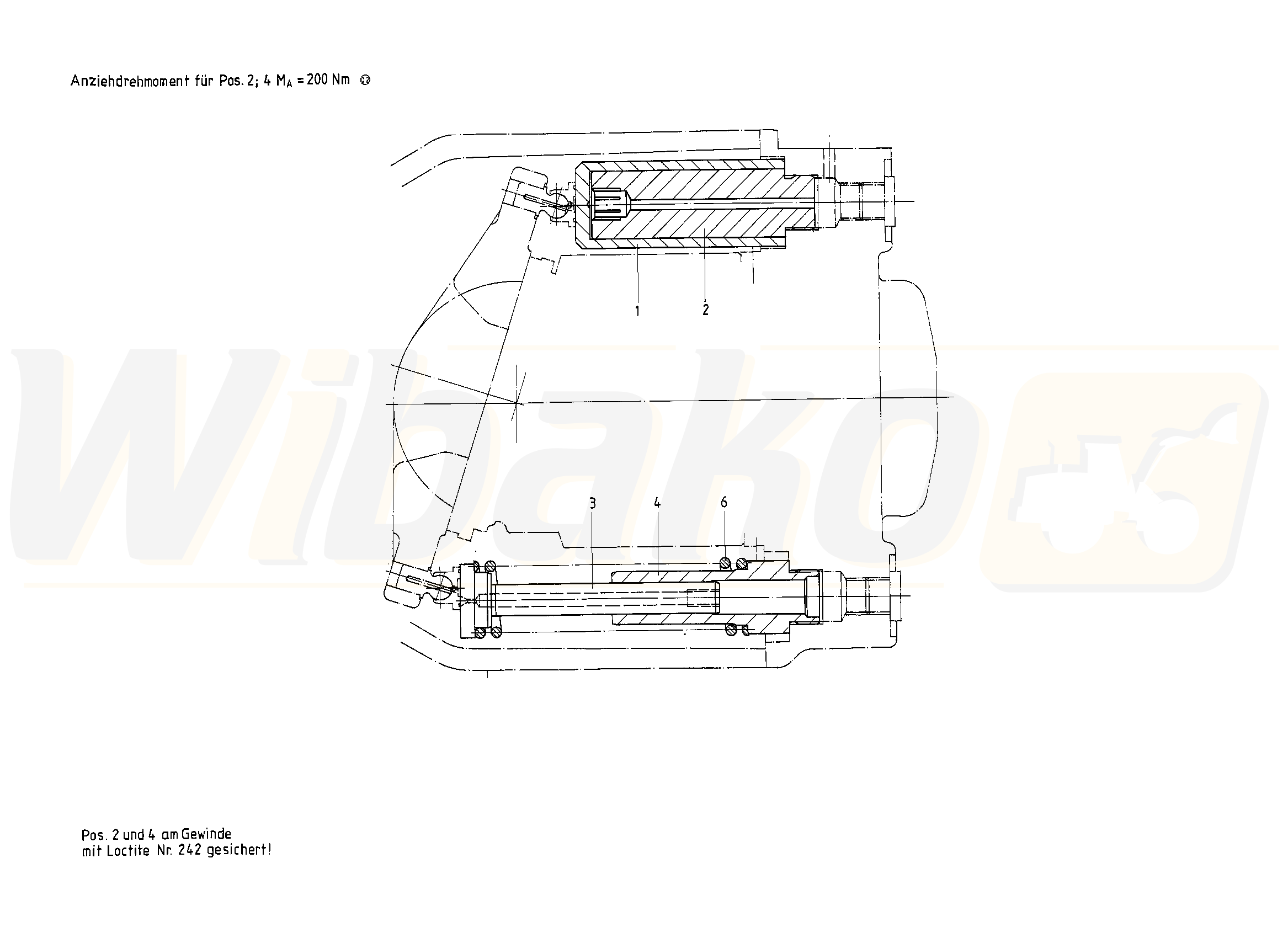

AA10VSO140DFR1/31R-PPB12K01-SO13 (R910930222)
ADJUSTING PIECE (122207)

ADJUSTING PIECE
(122207)


1

ADJUSTING PISTON
(17876)


2

PISTON GUIDE
(122208)


3

OPPOSED PISTON
(17878)


4

PISTON GUIDE
(17879)


6

SPRING
(17880)



Return
