A A10VSO140 FHD /31R-PPB12KB7 -SO453 (R910969599)

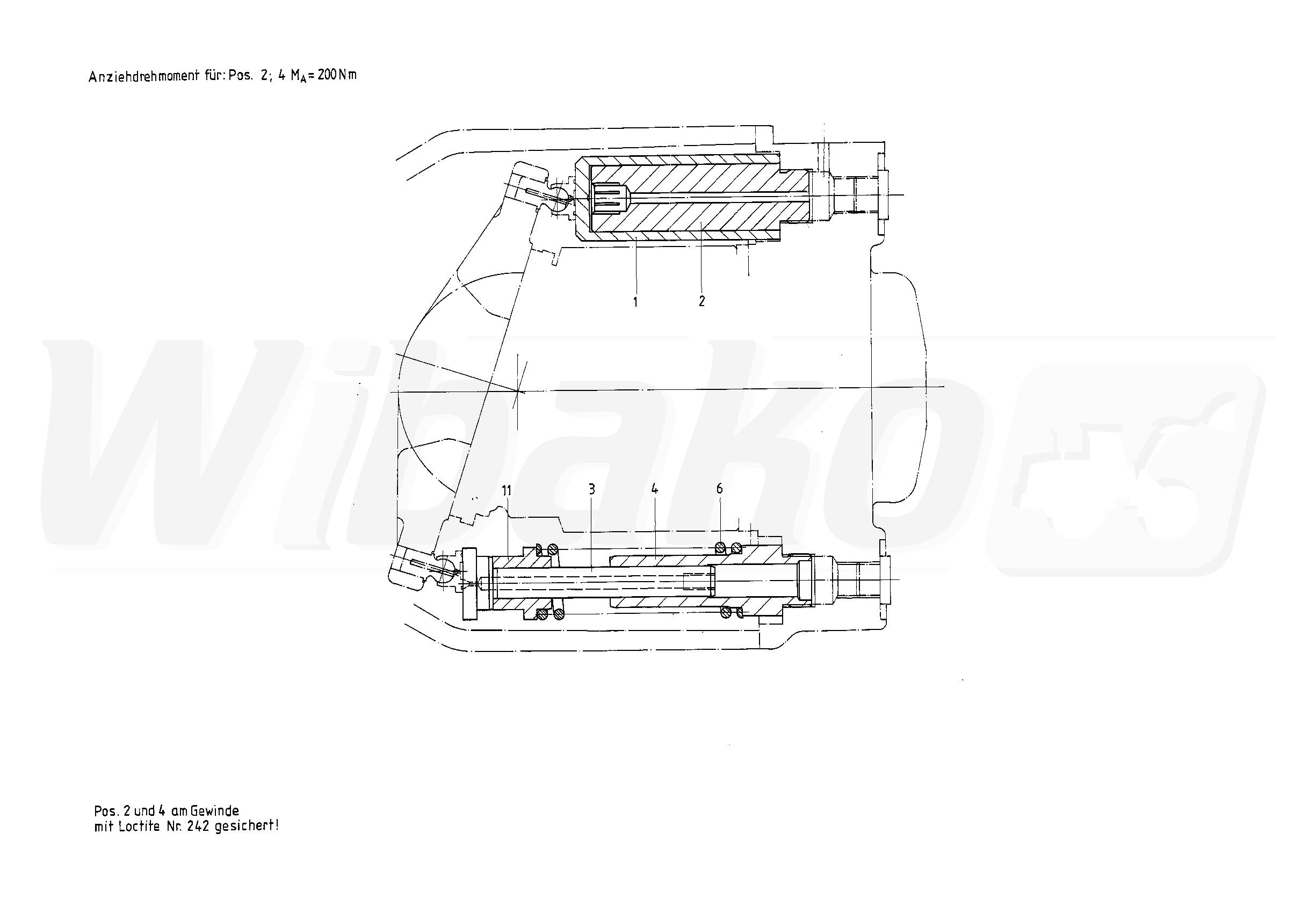

ADJUSTING PIECE (122389)

ADJUSTING PIECE
(122389)


1

ADJUSTING PISTON
(17876)


2

PISTON GUIDE
(122208)


3

OPPOSED PISTON
(17878)


4

PISTON GUIDE
(17879)


6

SPRING
(17880)


11

SPRING DISK
(122340)



Return

The above diagrams belong to Rexroth www.boschrexroth.com
