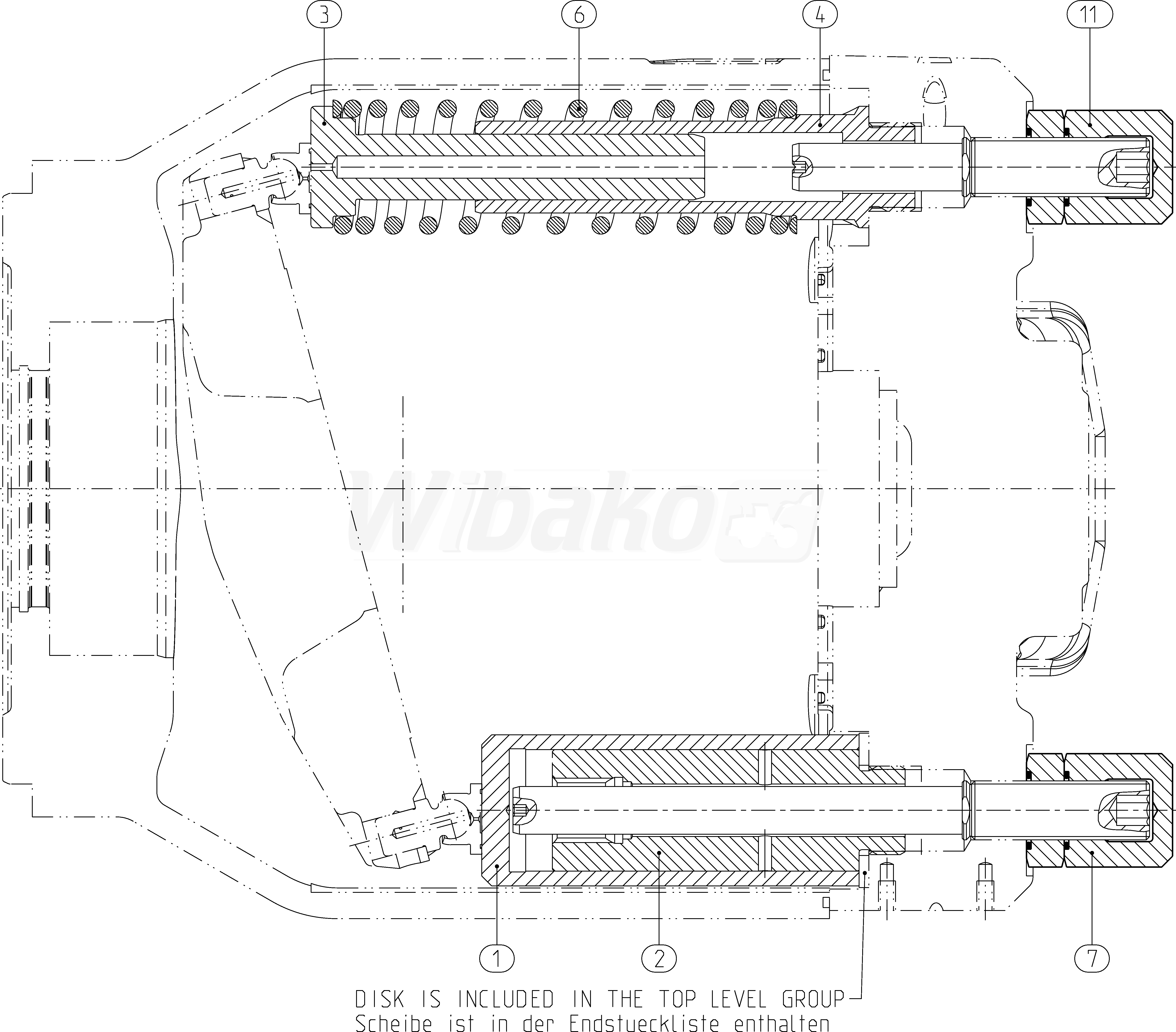

A A10VSO180 DR /32R-VSB12N00E (R902557409)
ADJUSTING PIECE (133703)

ADJUSTING PIECE
(133703)


1

ADJUSTING PISTON
(122605)


2

PISTON GUIDE
(133705)


3

OPPOSED PISTON
(122607)


4

PISTON GUIDE
(122608)


6

COMPRESSION SPRING
(122609)


7

STOP SCREW
(133706)


11

STOP SCREW
(133707)



Return
