A4VG085OE1CP0N0/40MRNC6Z81FA2S2AB00- (R902157030)

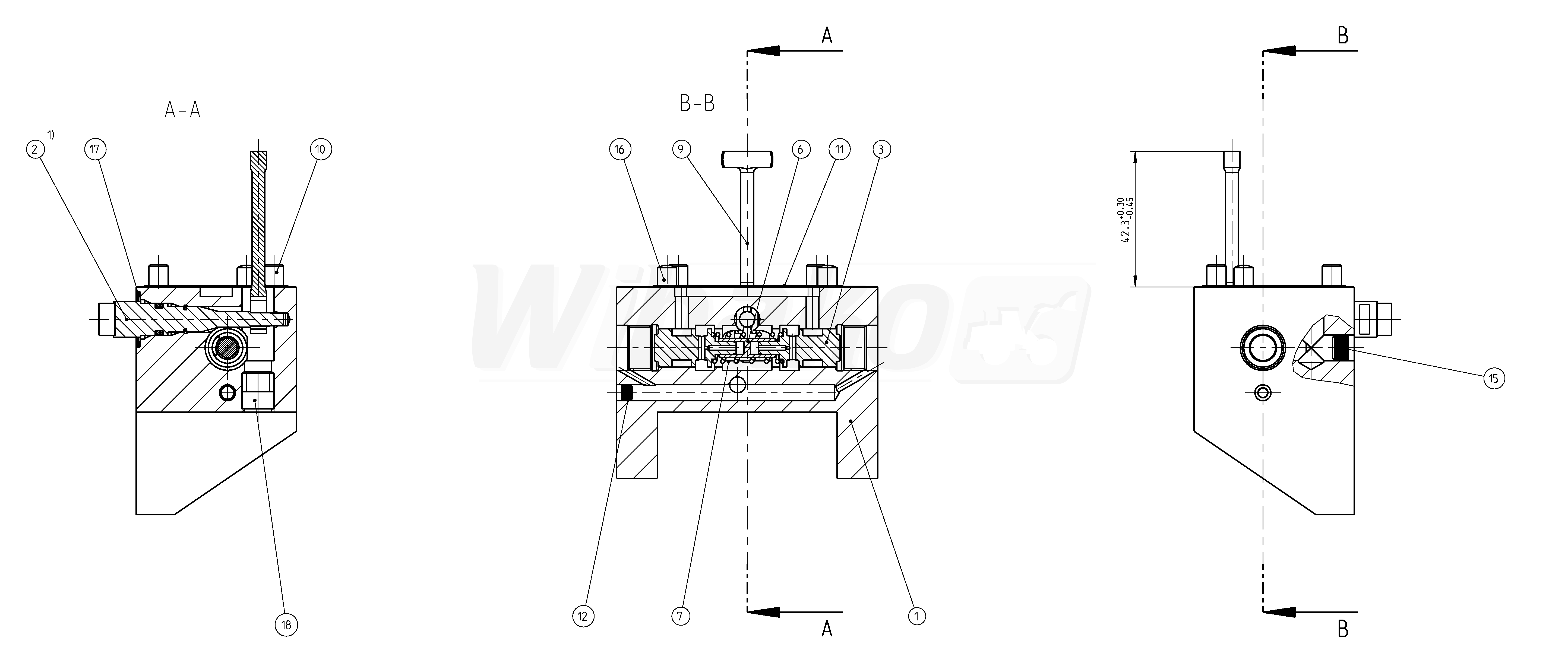

BASIC UNIT (31765)

BASIC UNIT
(31765)


1

HOUSING
(31944)


2

SENSOR SHAFT
(31945)


3

CONTROL PISTON
(31946)


6

SLEEVE
(31947)


7

COMPRESSION SPRING
(31948)


9

LEVER
(31949)


10

SOCKET HEAD CAP SCREW
(14633)


11

SEAL
(16122)


12

SEALING PLUG
(18364)


15

SEALING PLUG
(31908)


16

STRAIGHT PIN
(12694)


17

O-RING
(13428)


18

PLUG
(13073)
