A4VG110EP20PR00/40MLNDXA11UB2S4AE40-S (R902146712)
Axial piston variable pump A4VG, swashplate design, nominal pressure 450 bar, maximum pressure 500 bar. Pump, closed circuit. Geometric displacement 110 cm3. Proportional control, electric U = 24 V. Without pressure cut-off, without bypass. DEUTSCH molded connector, 2-pin – without suppressor diode. Electric swivel angle sensor (DWS20-1, 3-pin). Without additional function. Without DA control valve. Series 40. Metric ports according to ISO 6149 with O-ring seal, metric fastening thread according to DIN 13. Direction of rotation: counter-clockwise (viewed on drive shaft). Sealing material: NBR (nitrile rubber), shaft seal in FKM (fluoroelastomer). Filtration in the boost pump pressure line. Ports for external boost circuit filtration (Fe and Fa). Special version.

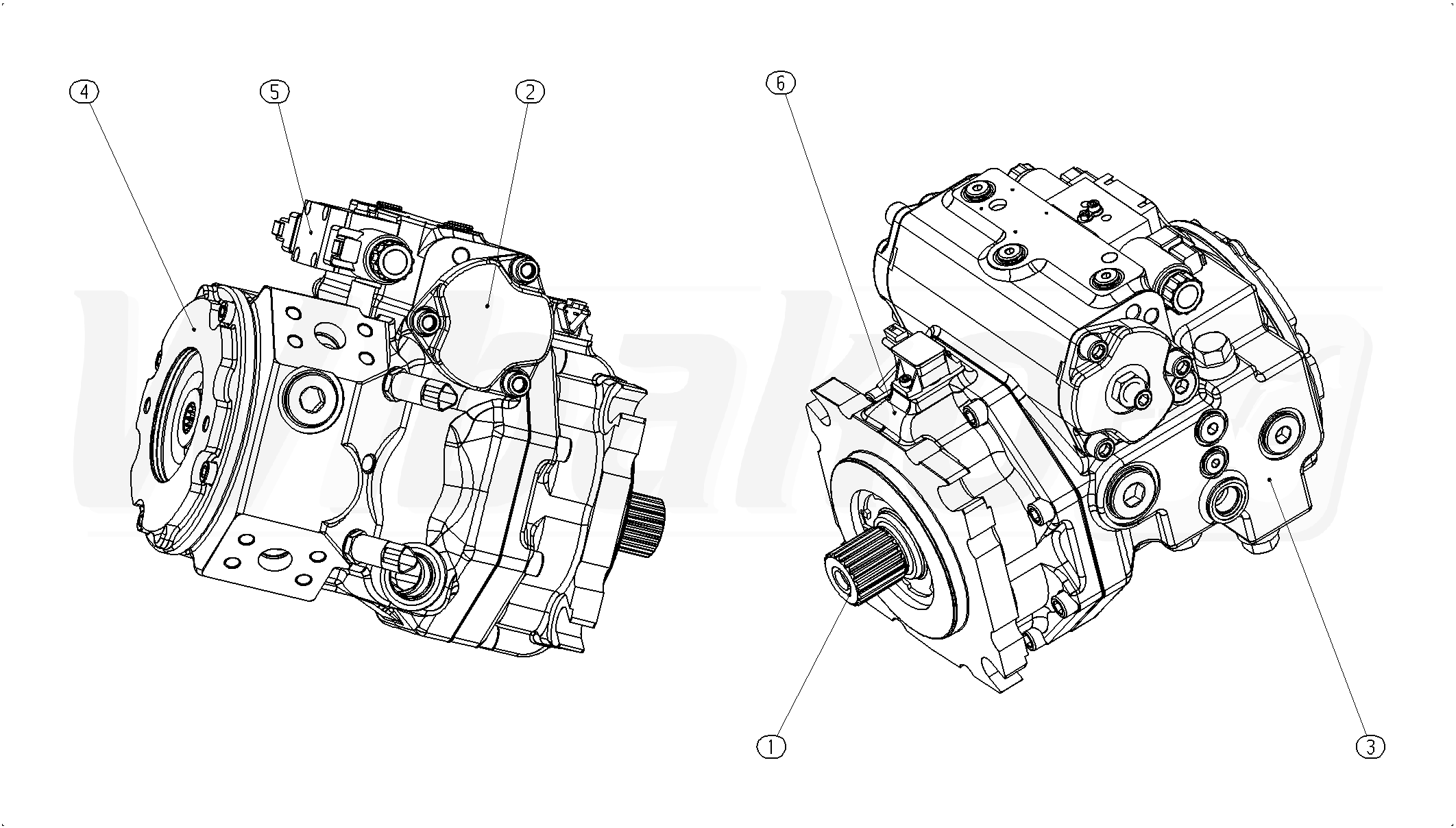

The above diagrams belong to Rexroth www.boschrexroth.com
